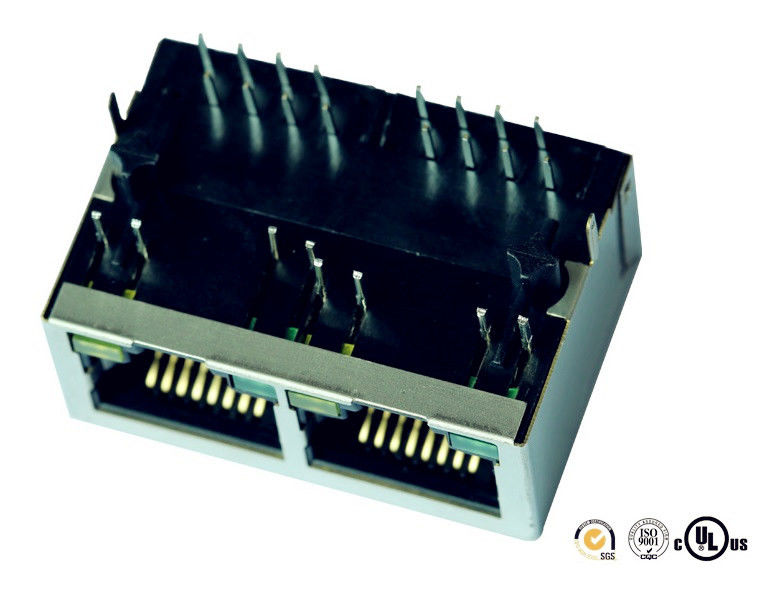

Aggregation Unmanaged Ethernet Switches Multi-port RJ45 Female Jack 189245777

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: ISO9001,SGS,UL,CE,REACH

Model Number: 189245777

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.11-$12

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 208K/Month

Get Best Price
Highlight:

modular jacks rj45

,

dual rj45 jack

Aggregation Unmanaged Ethernet Switches Multi-port RJ45 Female Jack 189245777



Aggregation Unmanaged Ethernet Switches Multi-port RJ45 Female Jack 189245777






Quick Details



  • 189245777
  • Vertical RJ45 Jack With Step
  • Meets Network Routers / modules / Switches
  • High performance for maximum EMI suppression.
  • LAN interface suitable for 100Base-TX for Communication Controllers
  • Designed for network interface card application and Network Adapter
  • Original materials are RoHS and UL94-V0 compliant
  • ISO9001,SGS,UL,CE,REACH
  • Cross LPJ21011NBNL

Features

  • Specially for fingerprint attendance machine board interface
  • Internet phone cameras

  • Single port, Multi-port and Stackable configurations (Thru-hole)

  • Reduces the number of components to be placed on the board

  • Frees up board space and offers signal protection

  • Noise reduction in the Ethernet network analyzer system

  • Improved reliability and optimal system performance

  • Benefits of having shorter signal paths and the reliability gains from systems containing fewer components

  • Helps manufacturers reach their goals of cost reduction




Specifications





Characteristics





Aggregation Unmanaged Ethernet Switches Multi-port RJ45 Female Jack 189245777

2)SMD,THT and THT with USB
3)350μH min,OCL with 8mA bias
4)Complies with IEEE 802.3

5)Extended temperature range  0°c~70°c ( or  -40°c~+85°c )

available

6)PoE/PoE+  (350mA~720mA)
Operation/Application         ×DSL Modems
EMbedded PC
LAN Applications
Hub,Router,Switches
AVR,DVR
Electrical Characteristics
Shielded with/without
Termination Features
EMI Finger with/without
Termination Method

Solder

Body  Features
LED with/without
EMI Fingers - Top and Sides with/without
Latch Orientation Tape UP/Down
PCB Tail Length 3.5±0.5mm

Height Above Board

Optional

Contact  Features
Preloaded YES
Contact Termination Type Through Hole
Connector Style Jack

Cores Number

8
Industry Standards
Lead Free Solder Process Wave solder capable to 265°c
RoHS/elv Compliance History Always was RoHS Compliant
Conditions for Usage
Applies To Printed Circuit Board
Environmental Conditions Office / Premises
Operating Temperature(°c) 0°c~70°c / -40°c~+85°c
Other Features
Magnetic Circuit 3D15
Status Indicator LED
Left LED Color Optional
Right LED Color Optional
Decoupling capacitor with/without
Rear PCB Ground Tab with/without
Singal Lead Quantity 8

Datasheets

E-mail Inquiry to Summer@link-PP.com

Others Name  LPJ21011NBNL






BeagleBone Black




LINK-PP RJ45  Designed for BeagleBone Black of Texas Instrument

http://www.ti.com/tool/beaglebk#0

a low-cost, open source, community-supported development platform for ARM® Cortex™-A8 processor developers and hobbyists.





                       LINK-PP ------------ The Appointed Supplier And Supporter Of Embedded System for Ti





Aggregation Unmanaged Ethernet Switches Multi-port RJ45 Female Jack 189245777 0








Related PN


We Can Also Make These Part Number Below



857931014 LPJK0036AGNL
3022815605 LPJE100XCNL
7490100111 LS1188R/LP1188NL
7497110616 LPJU6650BONL
7498011241 LPJ19201BGNL
7499011002 LPJ0012CNL
7499011121 LPJ0012GDNL
7499011122 LPJ0026GDNL
7499021220 LPJF26204AFNL
7499111121 LPJG0813GDNL
7499111447 LPJG16746A4NL
7499411121 LPJK2001AGNL
7499411122 LPJK2002AGNL
74990110030 LPJ1014CNL
74990111215 LPJ0151GDNL



Aggregation Unmanaged Ethernet Switches Multi-port RJ45 Female Jack 189245777 1






Order  Selection



Aggregation Unmanaged Ethernet Switches Multi-port RJ45 Female Jack 189245777
Type PCB Mount Thru-Hole (THT)
Number of Ports 1, 2, and 4 Ports and Stackable 2x1, 2x2, 2x4, 2x6 and 2x8
Shield and Unshield Available in Shield and Unshield
Connector Type RJ45
PoE Power Over Ethernet Integrated Or Without
Magnetics Magnetic Integrated
Magnetics Speed Magnetics 10/100Mbps Or 1000Mbps
Packaging Tray Options
Tab Location Tab Up and Tab Down Options
LED Color  Optional
Number of Positions 8 and 10 Positions or Others
Number of Contacts 8 and 10 Contacts or Others
RoHS Compliant Yes
Solder Temperature 230 TO 240 degr.C 5-10 SECONDS
Solder High-Temp Option 260 degr.C 5-10 SECONDS
High Temperature Option -40 to +85 Degrees F
Operating Temperature -0 to 70 Degrees C


Aggregation Unmanaged Ethernet Switches Multi-port RJ45 Female Jack 189245777





LINK-PP Factory Original Datasheet
