Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: HFJV1-2450-L12RL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: package:60 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10 KGS (1320 pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Part Number: |
HFJV1-2450-L12RL |
Made In China: |
SM-LPJD1011BDNL |
Cross&Datasheet: |
LPJD1011BDNL |
Interface: |
10/100Mbps |
Project Application: |
NETWORK INTERFACE CARD |
Samples: |
Free Active |
Part Number: |
HFJV1-2450-L12RL |
Made In China: |
SM-LPJD1011BDNL |
Cross&Datasheet: |
LPJD1011BDNL |
Interface: |
10/100Mbps |
Project Application: |
NETWORK INTERFACE CARD |
Samples: |
Free Active |
|
Part Number
|
Made In China
|
Manufacturer
|
Description
|
|
HFJV1-2450-L12RL
|
SM-LPJD1011BDNL
|
LINK-PP
|

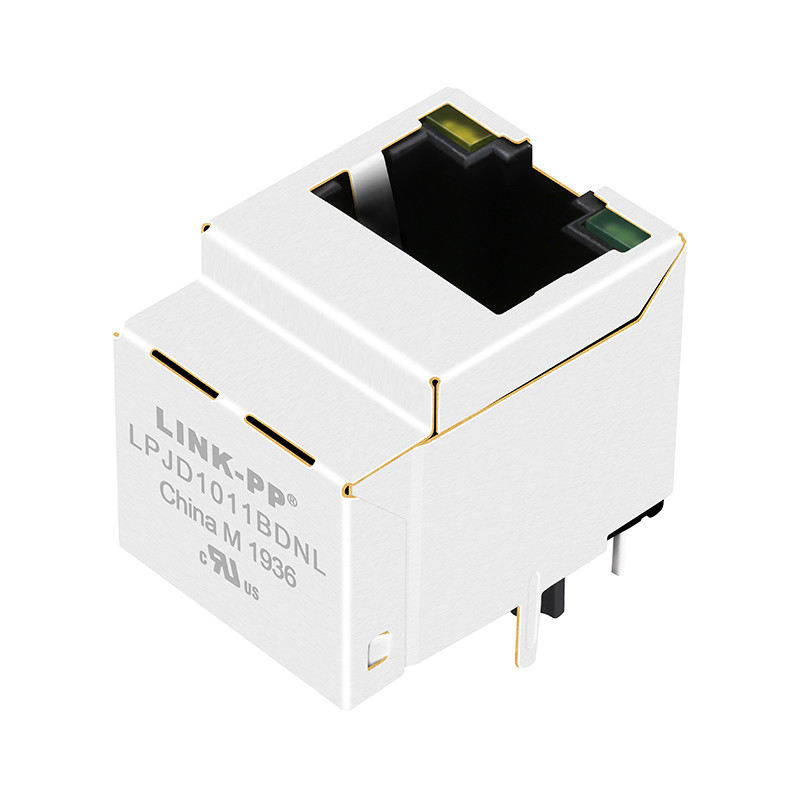

Vertical Step File RJ45 Jack HFJV1-2450-L12RL 10 / 100Base-T LPJD1011BDNL
|
|
Series
|
Connector Type
|
Applications
|
Mounting Type
|
|
Connectors, Interconnects
|
LINK-PP Rj45
|
10 Mbps
|
Thru-Hole
|
|
|
|||
|
Orientation
|
Termination
|
LED Color
|
Shielding
|
|
180° Angle (Vertical)
|
Solder
|
Yellow/Green
|
Shielded
|
| ELECTRICAL SPECFICATIONS @25℃ 1.Turn Ratio(±2%): TX=1CT:1CT RX=1CT:1CT 2.Inductance OCL: 350uH MIN @100KHz,0.1V,8mA DC Bias 3.Insertion Loss: -1.1dB MAX @ 0.1～100MHz 4.Return Loss: -18dB MIN @ 0.5～30MHz -15.5dB MIN @ 40MHz -13.6dB MIN @ 50MHz -12dB MIN @ 60～80MHz 5.Cross talk: -40dB TYP @ 0.1～100MHz 6.Common Mode Rejection: -50dB TYP @ 0.1～30MHz -40dB TYP @ 30～60MHz -35dB TYP @ 60～100MHz 7.Hipot Test: 1500Vrms MIN 8.Operating Temperature: 0℃～70℃. |
|||
|
