LP1102NL Ethernet Isolation Transformer Cross 10/100Base-T SMT Magnetic H1102NLT

China LP1102NL Ethernet Isolation Transformer Cross 10/100Base-T SMT Magnetic H1102NLT supplier

Large Image :  LP1102NL Ethernet Isolation Transformer Cross 10/100Base-T SMT Magnetic H1102NLT

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: LP1102NL

Payment & Shipping Terms:

Minimum Order Quantity: 750PCS
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: T/T,Paypal,Western Union
Supply Ability: 3000000/Month
Detailed Product Description
Part Number: LP1102NL Cross: H1102NL / T
Family: Ethernet Transformer Interface: 10/100base-T
Original Munafactuer: LINK-PP Samples: Available
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

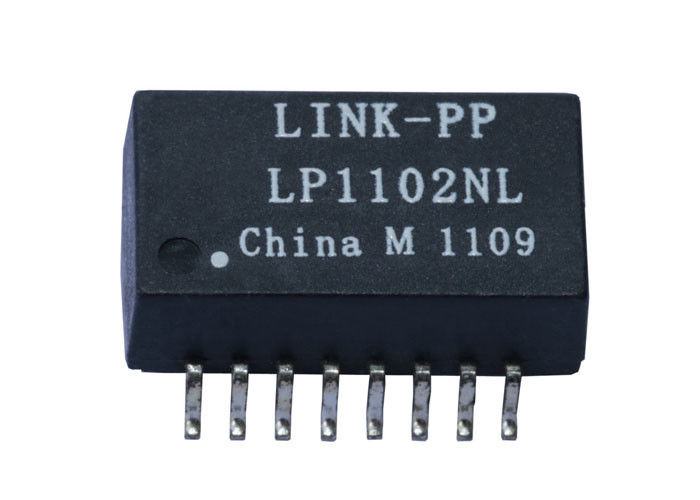

LP1102NL Ethernet Isolation Transformer Cross 10/100Base-T SMT Magnetic H1102NLT
PN
   Cross
Manufacturer
Description
LP1102NL
H1102NL / H1102NLT
LINK-PP
10/100BT 16Pins Transformer
LP1102NL Ethernet Isolation Transformer Cross 10/100Base-T SMT Magnetic H1102NLT          LP1102NL Ethernet Isolation Transformer Cross 10/100Base-T SMT Magnetic H1102NLT
Series
Transformer Type
Applications
Turn Radio
Transformer
Isolation and Data Interface
10/100 Base-T
1:1

Mounting Type
Size / Dimension
Height
Unit Price(USD)
Surface Mount
12.80mm L x 6.90mm
5.45mm
Supportive
Electrical Specifications @25℃
1.OCL: 350uH MIN
  @100KHz,0.1Vrms,8mADC Bias
2.Turns Ratio:
  TX=1CT∶1CT      RX=1CT∶1CT
3.Insertion Loss:
  0.1-100MHz:-1.1dB MAX
4.Return Loss(dB TYP):
  30MHz:-20    60MHz:-14
  80MHz:-11.5
5.Crosstalk(dB TYP):
  30MHz:-45    60MHz:-40
  100MHz:-35
6.DCMR(dB TYP):
  30MHz:-42    50MHz:-37
  100MHz:-33
7.Hipot: 1500Vrms MIN
8.Operating Temperature: 0℃~70℃.

NOTES:
1.Designed to support application,such as SOHO(ADSL
   modems),LAN-on-Motherboard(LOM),hub and Switches.
2.With various Turns Ratios.
3.RoHS"NL" peak solder rating 250℃.
