Detailed Product Description
Part Number: LPJG0820GENL Made In China: LPJG0820GENL
Family: Magnetic Rj45 Interface: 100/1000Mbps
Original Munafactuer: LINK-PP Samples: Free Available

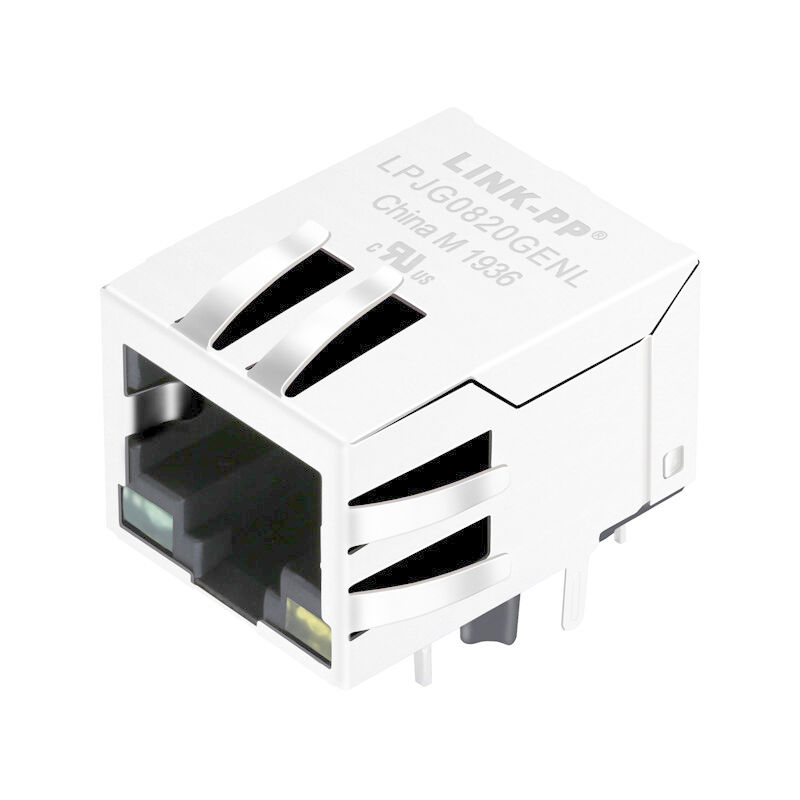

LPJG0820GENL 1000Base-T Magnetic 10Pins RJ45 Jack Shield W/LED Gigabit


Part Number
Made In China
Manufacturer
Description
LPJG0820GENL
LPJG0820GENL
LINK-PP
1000Base-T Magnetic 10Position RJ45 Jack Shield With LED
Series
Connector Type
Applications
Mounting Type
Connectors, Interconnects
LINK-PP Female Rj45
1000Mbps
Thru-Hole
Orientation
Termination
LED Color
Shielding
90 Degree
Solder
Green/Yellow
Shielded,EMI-Finger
Electrical Specifications @ 25℃
1.Inductance:
  350uH min, 100KHz, 100mV, 8mADC,
  J1-J2;J3-J6;J4-J5;J7-J8, LP.
2.Return Loss(dB Min):
  1-40MHz:-18      40-60MHz:-14
  60-80MHz:-12     80-100MHz:-10
3.Crosstalk:
  1-100MHz:-30dB Min
4.Insertion Loss:
  1-100MHz:-1.0dB Max
5.CMR:
  1-100MHz:-35dB Min
6.Turns Ratio:
  1CT∶1CT
7.Isolation Voltage: 1500Vrms/60Hz
8.Operating Temperature Range: 0℃-70℃ / -40℃- +85℃.​
SS-7188V-A-FLS
MJR11D2NNA0-H301
RB1-105B8K1A
446610021
SS-7188V-A-NF
MJR11D2NNA0-H34Y
RB1-105B8K2A
446611001
SS-7188V-A-NF-50
MJR11D2NNA4-H34K
RB1-106B005A
446611011
SS-7188VS-A-FLS
MJR11D2NNA4-K34K
RB1-106B5K1A
446611021
SS-7188VS-A-NF
MCR11A1GYA0-H34V
RB1-106B8K1A
480250002
SS-7188VS-A-NF-50
MCR11A2GYA4-H34U
RB1-106B9N1A
480250002
SS-7188VS-A-NF-A01
MCR11A2GYA4-H36E
RB1-106BHD2A
480250091
SS-7288SFR1-A-PG4-BA
MCR11A2GYA4-H34K
RB1-10NH5K1A
480251090
SS-7288SFR3-A-PG4-BA
MCR11A2GYA4-K34K
RB1-125B1A1F
480251090
SS-73100-001
EJFR0011
RB1-125BAG1A
480251091
SS-73100-002
MJR11U2GYA5-H301
RB1-125BAK1A
480251190
SS-73100-003
MJR11U2GYA5-H30G
RB1-125BHQ1A
480251190
SS-73100-008
MJR11U2GYA5-H30H
RB1-126B1K1A
480252090
SS-73100-009
MJR11U2GYA5-H30Y
RB1-126BAG1A
480253090
SS-73100-028
MJR11U2GYA5-H33D
RB1-126SAM1A
480254000
SS-73100-034
MJR11U2GYA5-H701
RB1-156BAK1F
480332900
SS-73100-035
MJR11U2GYA5-K30Y
RB1-165BAK1A
480334900

NOTES:
1.Designed to support application,such as SOHO(ADSL modems),LAN-on-Motherboard(LOM),hub and                  Switches.
2.Meets IEEE 802.3 specification
3.Connector Materials:
  Housing:Thermoplastic UL94V-0
  Contact/Shield: Copper alloy
  Shield plating: Nickel
  Contact plating: Gold 6 micro-inches min.In contact area.
4.Wave solder tip temperature: 265℃ Max
    Wave solder tip temperature time: 5 Sec Max
