XRJH-01E-4-D3C-170 RJ45 With Integrated 10 / 100M Magnetics and LED LPJ16125AENL

China XRJH-01E-4-D3C-170 RJ45 With Integrated 10 / 100M Magnetics and LED LPJ16125AENL supplier
XRJH-01E-4-D3C-170 RJ45 With Integrated 10 / 100M Magnetics and LED LPJ16125AENL supplier XRJH-01E-4-D3C-170 RJ45 With Integrated 10 / 100M Magnetics and LED LPJ16125AENL supplier

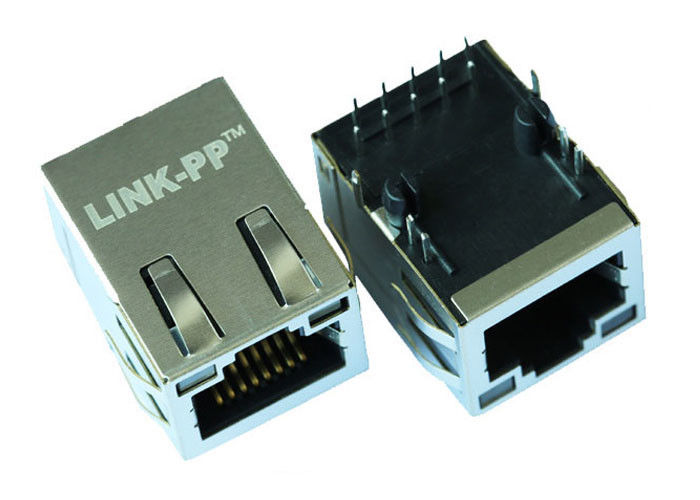

Large Image :  XRJH-01E-4-D3C-170 RJ45 With Integrated 10 / 100M Magnetics and LED LPJ16125AENL

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: XRJH-01E-4-D3C-170

Payment & Shipping Terms:

Minimum Order Quantity: 500 PCS
Price: 0.5~10 USD/PCS
Packaging Details: package:60 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10 KGS (1320 pcs) of each carton
Delivery Time: 3-30 work days
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Part Number: XRJH-01E-4-D3C-170 Specification: LPJ16125AENL
Cross&Datasheet: LPJ16125AENL Apllication: 10/100 Base-T(x)
Original Munafactuer: LINK-PP Mail Customer: Ti, Intel, Cisco, Samsung, Fluke, Arduino ,Hp,Jabil,Flextronics

XRJH-01E-4-D3C-170 RJ45 With Integrated 10 / 100M Magnetics and LED LPJ16125AENL



Single Port RJ45 Connector with 10/100 Base-T Integrated Magnetics,Green/Yellow LED,Tab Up,RoHS
LINK-PP Part Number LPJ16125AENL
X Multiple Part Number XRJH-01E-4-D3C-170
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option GREEN/YELLOW
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.535
Package Height (mm) 13.60
Package Length (Inches) 0.846
Package Length (mm) 21.50
Package Width (Inches) 0.630
Package Width (mm) 16.00
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITHOUT
Speed 10/100 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

XRJH-01E-4-D3C-170 RJ45 With Integrated 10 / 100M Magnetics and LED LPJ16125AENL


XRJH-01E-4-D3C-170 RJ45 With Integrated 10 / 100M Magnetics and LED LPJ16125AENL
