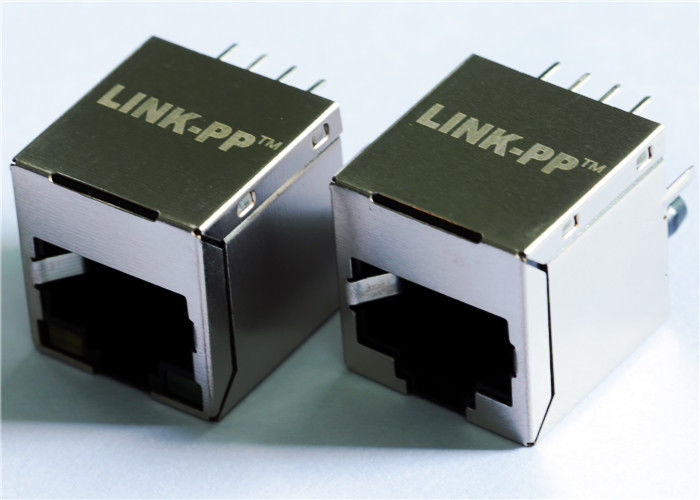

LPJD4012DNL , Vertical Entry Rj45 with Magnetic SI-16001-F 10/100Base-T

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: LPJD4012DNL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 60 pcs in 1 tray,11KGS (1200 pcs) of each carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price
Highlight:

stacked rj45 connectors

,

multi port connector

P.N:
LPJD4012DNL
Cross Spec:
SI-16001-F Belfuse
Family:
Vertical Magjack
Application:
10/100 Base-T
Termination:
Solder
LEDs:
Without Or With
Samples:
Free 3-5 Pcs
P.N:
LPJD4012DNL
Cross Spec:
SI-16001-F Belfuse
Family:
Vertical Magjack
Application:
10/100 Base-T
Termination:
Solder
LEDs:
Without Or With
Samples:
Free 3-5 Pcs
LPJD4012DNL , Vertical Entry Rj45 with Magnetic SI-16001-F 10/100Base-T
LPJD4012DNL , Vertical Entry Rj45 with Magnetic SI-16001-F 10/100Base-T



1.RJ45 1X1 Vertical LPJD4012DNL
2.Through Hole
3.10/100/ Base-T
4.Contact Area : Gold Flash

LPJD4012DNL , Vertical Entry Rj45 with Magnetic SI-16001-F 10/100Base-T 0

MAG., REVERSE LATCH , LED optional, EMI-finger Optional.



Description


1X1-Rj45 Vertical With Magnetics with/without leds, meeting IEEE 802.3 af/at

1. Product Type Features:

  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)

2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
  1) Shielded = Yes

4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder

5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length

6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
  1) Connector Style = Jack

8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,

      Wave solder capable to 260°C, Wave solder capable to 265°C

      Reflow-Soldering Optional;
  3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85

11.Hipot:

     1500Vrms MIN



Applications For Terminal User



Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...
