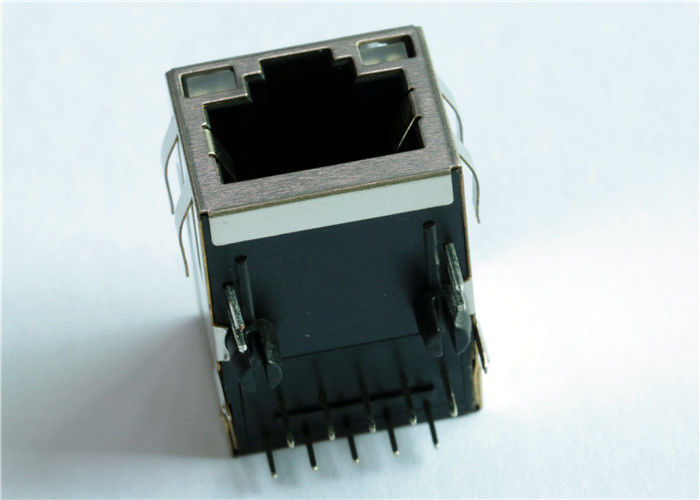

203352 RJ45 Magnetic Module , Single Port jack To Wireless Data Networking

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: 203352

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 50 pcs in 1 tray,24tray in 1 carton, which is 37*30*30 cm, 9KGS (1200 pcs) of each carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price
Highlight:

stacked rj45 connectors

,

rj45 magnetic jack

Spec:
203352
Cross PN:
LPJG16313A31NL
Magnetics:
Inside
Application:
10 / 100Base-T
Termination:
Solder
LEDs:
Optional
Shielded:
Yes
Samples:
Free
Spec:
203352
Cross PN:
LPJG16313A31NL
Magnetics:
Inside
Application:
10 / 100Base-T
Termination:
Solder
LEDs:
Optional
Shielded:
Yes
Samples:
Free
203352 RJ45 Magnetic Module , Single Port jack To Wireless Data Networking
203352 RJ45 Magnetic Module , Single Port  jack To Wireless Data Networking

1.10/100 Base-TX RJ45 1x1 Tab-UP with integrated magnetics connector,
2.Through Hole RJ45 With Integrated Magnetics
3.With or Without POE/POE(+)
4.Contact Area : Gold Flash
5.Old Model: 【203352】
6.New&Equivalent Pin to Pin【LPJG17313A31NL】
203352 RJ45 Magnetic Module , Single Port  jack To Wireless Data Networking 0
Description

1X1-Rj45 with/without leds, meeting IEEE 802.3u
1. Product Type Features:
  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)
2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
  1) Shielded = Yes
4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder
5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length
6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
  1) Connector Style = Jack
8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,
      Wave solder capable to 260°C, Wave solder capable to 265°C
      Reflow-Soldering Optional;
  3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor
10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85
11.Hipot:
     1500Vrms MIN

Applications For Terminal User



Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...
