RTA-164ANNNA Rj45 Modular connectors , Single Port jack IP-PBX system

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: RTA-164ANNNA

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 60 pcs in 1 tray,20tray in 1 carton, which is 37*30*30 cm, 11KGS (1200 pcs) of each carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price
Highlight:

rj45 with magnetics

,

rj45 magnetic jack

Spec:
RTA-164ANNNA
P.N:
LPJG17321-1AONL
Application:
100 /1000Base-T
3D:
IGS.Step,Stp File Datasheet
LEDs:
Optional
Magnetics:
Inside
Samples:
Available
Spec:
RTA-164ANNNA
P.N:
LPJG17321-1AONL
Application:
100 /1000Base-T
3D:
IGS.Step,Stp File Datasheet
LEDs:
Optional
Magnetics:
Inside
Samples:
Available
RTA-164ANNNA Rj45 Modular connectors , Single Port jack IP-PBX system
RTA-164ANNNA Rj45 Modular connectors , Single Port  jack IP-PBX system

1.100/1000 Base-TX RJ45 1x1 Tab-UP with integrated magnetics connector,
2.Through Hole
3.LED Indicators
4.Contact Area : Gold Flash
5. MAG., REVERSE LATCH , LED optional, EMI-finger Optional.
6  LPJG17321-1AONL  Pin to Pin Cross RTA-164ANNNA  Replacement

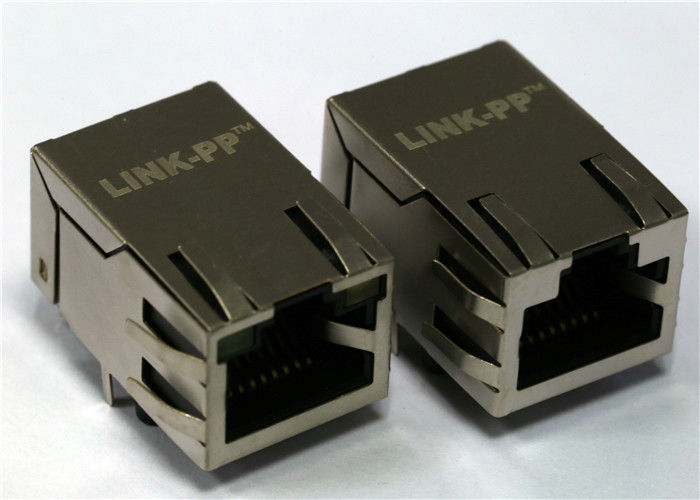

RTA-164ANNNA Rj45 Modular connectors , Single Port  jack IP-PBX system 0
Description

1X1-Rj45 with/without leds, meeting IEEE 802.3ab
1. Product Type Features:
  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)
2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
  1) Shielded = Yes
4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder
5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length
6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
  1) Connector Style = Jack
8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,
      Wave solder capable to 260°C, Wave solder capable to 265°C
      Reflow-Soldering Optional;
  3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor
10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85
11.Hipot:
     1500Vrms MIN

Applications For Terminal User
Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...

Competitive Advantage

18 years production experience,
2600 staff,
100% test
Flexible delivery time

Main Customer

Design for Ti , Intel , Samsung ,  Fluke , Jabil  , Flextronics ,Cypress, Freescale,EKF.......

EMS Application

Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
