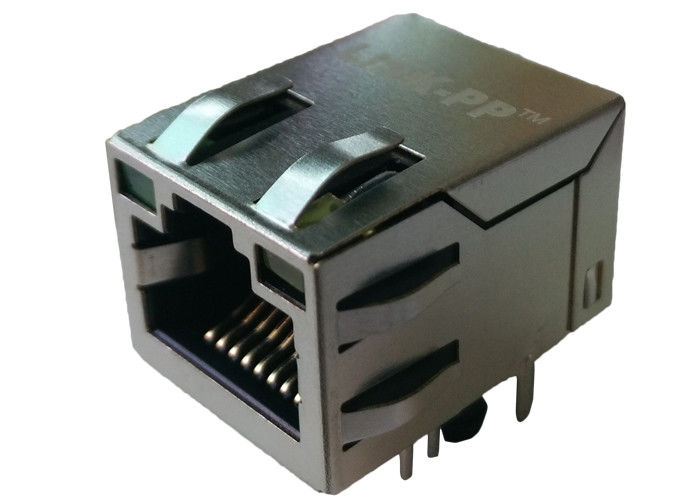

HFJT1-1G01-L11RL RJ45 With Integrated Magnetics1x1 Tab-Up Gigabit FastJack

Name: HFJT1-1G01-L11RL RJ45 With Integrated Magnetics1x1 Tab-Up Gigabit FastJack
Brand: LINK-PP
SKU: LPJG16313AENL
Rating: 5 (192 reviews)

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: LPJG16313AENL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 60 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10 KGS (1320 pcs) of each carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                stacked rj45 connectors, rj45 with magnetics


Spec:	HFJT1-1G01-L11RL	Alternate:	LPJG16313AENL
Ethernet:	Gigabit Female Socket	I.O:	10/100/1000Base-T
Termination:	Solder	LEDs:	Optional
Files:	3D Step File PDF	Cross Ref:	LPJG16313AENL = HFJT1-1G01-L11RL

Spec:	HFJT1-1G01-L11RL
Alternate:	LPJG16313AENL
Ethernet:	Gigabit Female Socket
I.O:	10/100/1000Base-T
Termination:	Solder
LEDs:	Optional
Files:	3D Step File PDF
Cross Ref:	LPJG16313AENL = HFJT1-1G01-L11RL

HFJT1-1G01-L11RL RJ45 With Integrated Magnetics1x1 Tab-Up Gigabit FastJack

HFJT1-1G01-L11RL RJ45 With Integrated Magnetics Alternate by LPJG16313AENL

Quick Details

FastJack™ 1x1 Tab-Up Gigabit Short Body RJ45 LPJG16313AENL

1.Gigabit (10/100/1000) Ethernet RJ45
2.IEEE802.3ab Compliant Compatible to HFJT1-1G01-L11RL Pin to Pin
3.350uH min OCL at 8mA DC Bias Across the Full Temp Range
4.30µ” Gold Plating (min) on Contacts
5.100% Compliance Testing
6.1500Vrms Hi-Pot
7.Proprietary Robust Contact Design

Description

FastJack™ 1x1 Tab-Up Gigabit Short Body RJ45 , Meeting IEEE 802.3/ af/at

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)

2. Mechanical Attachment:
1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C

Reflow-Soldering Optional;
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85

11.Hipot:

1500Vrms MIN

Applications For Terminal User

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...
