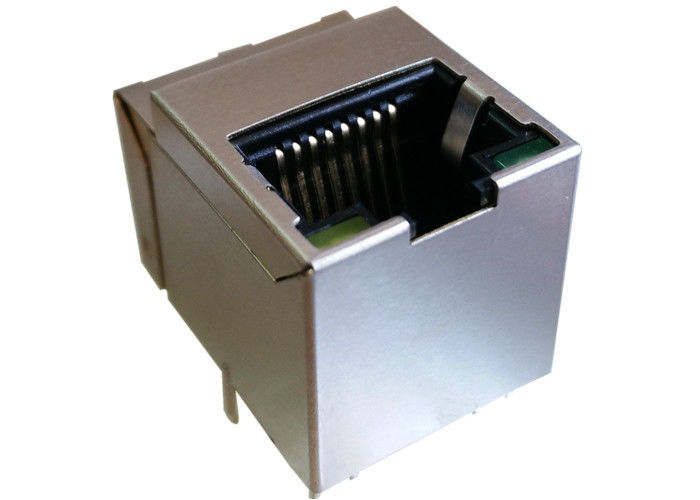

HFJV1-2450-L55RL Vertical RJ45 Jack 10 / 100BASE-TX Magnetic Ethernet Connector

HFJV1-2450-L21RL Vertical RJ45 Jack 10 / 100BASE-TX  Magnetic Ethernet Connector

Quick Details

FastJack ™ 1x1 Vertical 10/100BASE-T RJ45

1. 10/100BASE-T Ethernet RJ45
2. IEEE802.3u Compliant
3. 350uH min OCL at 8mA DC Bias Across the Full Temp Range
4. 30µ” Gold Plating (min) on Contacts
5. 100% Compliance Testing
6. 1500Vrms Hi-Pot

7. Designing Model: 【HFJV1-2450-L21RL】

8. Mass Production Model:【LPJDXXXXNL】

MAG.REVERSE LATCH ,

LED optional ; EMI-finger Optional.

Description


FastJack ™ 1x1 Vertical 10/100BASE-T RJ45 , Meeting IEEE 802.3/ af/at

1. Product Type Features:

  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)

2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
  1) Shielded = Yes

4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder

5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length

6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
  1) Connector Style = Jack

8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,

      Wave solder capable to 260°C, Wave solder capable to 265°C

      Reflow-Soldering Optional;
  3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85

11.Hipot:

     1500Vrms MIN

Applications For Terminal User

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...

Competitive Advantage

18 years production experience,

2600 staff,

100% test

Flexible delivery time

Main Customer

Design for Ti , Intel , Samsung ,  Fluke , Jabil  , Flextronics ,Cypress, Freescale,EKF.......
