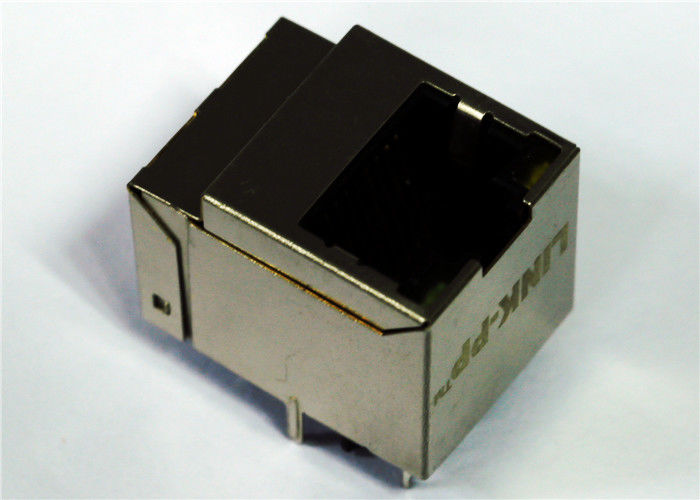

HFJV1-E2450-L78RL Rj45 Vertical With Magnetics Ethernet Connector PCB Jack

Name: HFJV1-E2450-L78RL Rj45 Vertical With Magnetics Ethernet Connector PCB Jack
Brand: LINK-PP
SKU: LPJD5011B136NL
Price: 0.09 USD
Availability: InStock
Rating: 4.8 (173 reviews)

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: LPJD5011B136NL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 54 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10KGS (1080 pcs) of each carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                stacked rj45 connectors, modular jacks rj45


P.N:	HFJV1-E2450-L78RL	Alternate:	LPJD5011B136NL
Original Munafactuer:	LINK-PP	Application:	10 / 100 Base-T
Termination:	Solder	LEDs:	Optional
Mount Style:	DIP / Top Entry	Cross Rf:	HFJV1-E2450-L78RL = LPJD5011B136NL

P.N:	HFJV1-E2450-L78RL
Alternate:	LPJD5011B136NL
Original Munafactuer:	LINK-PP
Application:	10 / 100 Base-T
Termination:	Solder
LEDs:	Optional
Mount Style:	DIP / Top Entry
Cross Rf:	HFJV1-E2450-L78RL = LPJD5011B136NL

HFJV1-E2450-L78RL Rj45 Vertical With Magnetics Ethernet Connector PCB Jack

HFJV1-E2450-L78RL Rj45 Vertical With Magnetics Ethernet Connector PCB Jack

Pin to pin HFJV1-E2450-L78RL Compatible

1. 10/100BASE-T Ethernet RJ45
2. IEEE802.3u Compliant
3. 350uH min OCL at 8mA DC Bias Across the Full Temp Range
4. 6-30µ” Gold Plating (min) on Contacts
5. 100% Compliance Testing
6. 1500Vrms Hi-Pot

Applications For Terminal User

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...

Competitive Advantage

18 years production experience,

2600 staff,

100% test

Flexible delivery time

Main Customer

Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......

EMS Application

Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
