1840426-5 Mag45 Modular Jack 1840426-2 Gigabit Circuit Shieeded Tab Down

China 1840426-5 Mag45 Modular Jack 1840426-2 Gigabit Circuit Shieeded Tab Down supplier

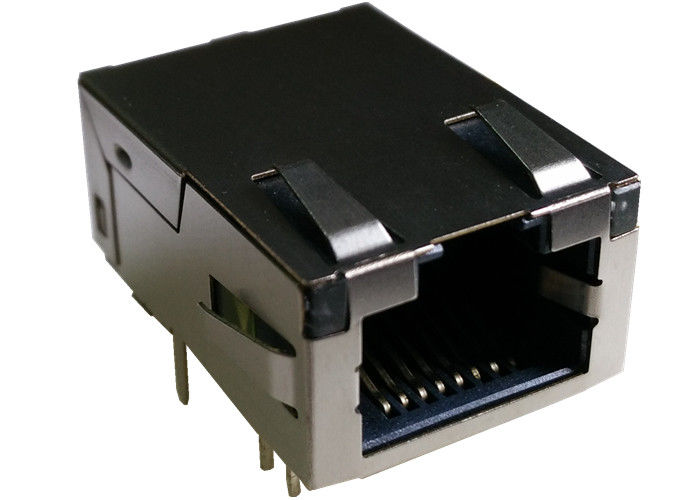

Large Image :  1840426-5 Mag45 Modular Jack 1840426-2 Gigabit Circuit Shieeded Tab Down

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: 1840426-5

Payment & Shipping Terms:

Minimum Order Quantity: 200/500/1200
Price: Supportive
Packaging Details: 60pcs/tray,or Reel Package
Delivery Time: Stock or 4-5 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 2800K-PCS/Month
Contact Now
Detailed Product Description
Part Number: 1840426-5 Mass Production: LPJKXXXXNL
Original Munafactuer: LINK-PP Application: 100/ 1000 Base-T
Termination: Solder LEDs: Optional
IC Match: ATSAM3S1CB-CUR Mount Style: DIP / Side Entry

1840426-5 Mag45 Modular Jack 1840426-2 Gigabit Circuit Shieeded Tab Down

Quick Details

Tyco Jack Low Profile 1x1 Tab-Down

1.RoHS “NL” peak solder rating 260°C
2.Low height and small footprint to minimize board space

3.Meets IEEE 802.3 specification
4.350µH minimum OCL with 8mA bias current
5.High performance for maximum EMI suppression

6.Designing Model: 【1840426-5

7.Mass Production Model:【LPJKXXXXNL


MAG.REVERSE LATCH ,

LED optional ; EMI-finger Optional.


Description


Pulse Jack Low Profile 1x1 Tab-Up , Meeting IEEE 802.3/ af/at

LINK-PP Part Number LPJKXXXXXNL
Tyco Part Number 1840426-5
Application-Lan ETHERNET(NoN PoE)
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option WITHOUT LED
Latch TAB DOWN
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (mm) 11.30
Package Length (mm) 24.13
Package Width (mm) 17.78
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 1000 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
