HFJV1-1G11RL Rj45 Vertical Mount HFJV1-1G16RL 10 / 100 / 1000Base-T Ethernet

China HFJV1-1G11RL Rj45 Vertical Mount HFJV1-1G16RL 10 / 100 / 1000Base-T Ethernet supplier
HFJV1-1G11RL Rj45 Vertical Mount HFJV1-1G16RL 10 / 100 / 1000Base-T Ethernet supplier HFJV1-1G11RL Rj45 Vertical Mount HFJV1-1G16RL 10 / 100 / 1000Base-T Ethernet supplier

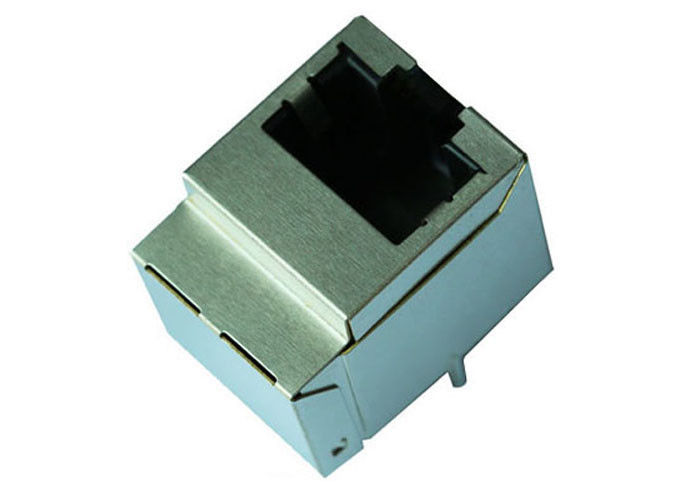

Large Image :  HFJV1-1G11RL Rj45 Vertical Mount HFJV1-1G16RL 10 / 100 / 1000Base-T Ethernet

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: HFJV1-1G11RL / HFJV1-1G16RL

Payment & Shipping Terms:

Minimum Order Quantity: 200 PCS
Price: 1.125↑
Packaging Details: 54 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10KGS (1080 pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Part NO.1: HFJV1-1G11RL Part NO.2: HFJV1-1G16RL
Mass Production: LPJD0773DNL Original Munafactuer: LINK-PP
Application: 10/100/1000Mbps Termination: Solder
LEDs: Optional Part NuMount Stylember2: DIP / Top Entry

HFJV1-1G11RL Rj45 Vertical Mount HFJV1-1G16RL 10 / 100 / 1000Base-T Ethernet

Quick Details

FastJack ™ 1x1 Vertical Gigabit RJ45

1.Gigabit (10/100/1000) Ethernet RJ45
2.IEEE802.3ab Compliant
3.350uH min OCL at 8mA DC Bias Across theFull Temp Range
4.30µ” Gold Plating (min) on Contacts
5.100% Compliance Testing
6.1500Vrms Hi-Pot

7..Designing Model: 【HFJV1-1G11RL / HFJV1-1G16RL

8..Mass Production Model:【LPJD0773DNL



MAG., REVERSE LATCH , LED optional, EMI-finger Optional.




Description

Vertical Ethernet Connector Gigabit 10 / 100 / 1000 Ethernet RJ45 Jack ,Without LED,RoHS
LINK-PP Part Number LPJD0773DNL
Halo Part Number HFJV1-1G11RL
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option Without
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.650
Package Height (mm) 16.51
Package Length (Inches) 0.849
Package Length (mm) 21.56
Package Width (Inches) 0.628
Package Width (mm) 15.95
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITHOUT
Speed 1000 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Applications For Terminal User

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...



Competitive Advantage



18 years production experience,

2600 staff,

100% test

Flexible delivery time



Main Customer



Design for Ti , Intel , Samsung ,  Fluke , Jabil  , Flextronics ,Cypress, Freescale,EKF.......





EMS Application



Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
