7498011122AR Sunk PCB RJ45 Low-Profile Magnetic Jack 10/100Base-T W/LEDs

Good quality Magnetic RJ45 Jack for sales
Good quality Magnetic RJ45 Jack for sales
WOW , 100% Tested ,Zero Defective

—— TI

LINK-PP is Our Best Supplier in China

—— Intel

Thanks a Lot For Supplying Excellent RJ45 And Transformer ,LINK-PP Deserve the Consideration Worldwidely

—— Cisco

LINK-PP is Flex type A Vendor For All RJ45 Connector and Transformer

—— Flextronics

I'm Online Chat Now

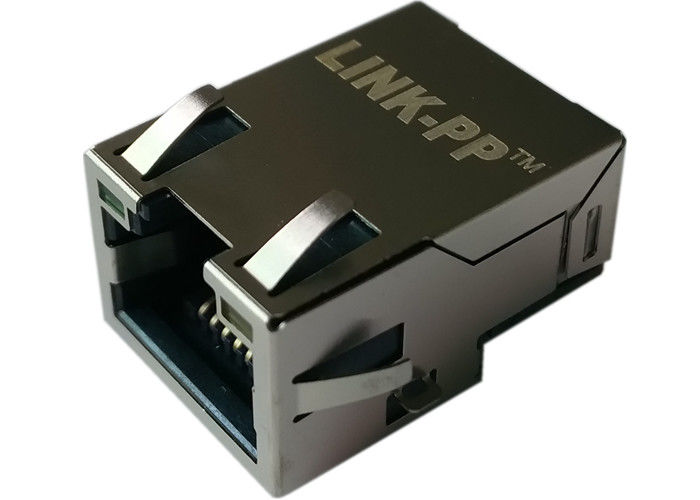

7498011122AR Sunk PCB RJ45 Low-Profile Magnetic Jack 10/100Base-T W/LEDs

China 7498011122AR Sunk PCB RJ45 Low-Profile Magnetic Jack 10/100Base-T W/LEDs supplier
7498011122AR Sunk PCB RJ45 Low-Profile Magnetic Jack 10/100Base-T W/LEDs supplier 7498011122AR Sunk PCB RJ45 Low-Profile Magnetic Jack 10/100Base-T W/LEDs supplier 7498011122AR Sunk PCB RJ45 Low-Profile Magnetic Jack 10/100Base-T W/LEDs supplier

Large Image :  7498011122AR Sunk PCB RJ45 Low-Profile Magnetic Jack 10/100Base-T W/LEDs

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: 7498011122AR

Payment & Shipping Terms:

Minimum Order Quantity: 500/2000
Price: Supportive
Packaging Details: Reel packing style
Delivery Time: Stock or 5 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Spec: 7498011122AR P.N Analogue: LPJ19911ADNL
Mounting: SMT Application: 10/100Base-T Interface
Termination: Solder LEDs: Optional
Samples: Free Mount Style: DIP / Side Entry

7498011122AR Sunk PCB RJ45 Low-Profile Magnetic Jack 10/100Base-T W/LEDs

1. RJ-45 needs to be matched FCC standard.
2. Complies with requirement of IEEE802.3u standards.
3. RJ-45 connector integrated with transformer/impedance resistor/high voltage capacitor.
4. Size same as RJ-45 connector to save PCB board space.
5. Reduced EMI radiation to improve EMI performance.
6. Design for 10/100 BASE transmission over UTP-5 cable.
7. Compliance with ROHS requirements.
8. Operating temperature range: 0℃ to +70℃/ -40℃ to +85℃
9. Storage temperature range: -25℃ to +85℃.
10. Designing Model: 7498011122AR
11. Mass Production Model:LPJ19911ADNL Pin to Pin

MAG.REVERSE LATCH ,
LED optional ; EMI-finger Optional.
7498011122AR Sunk PCB RJ45 Low-Profile Magnetic Jack 10/100Base-T W/LEDs
Description

LAN-Übertrager WE-RJ45LAN 10/100BaseT
SMT 1x1 Port RJ45 Magjack Connector with 10/100 Base-T Integrated Magnetics,Yellow/Green LED,Tab UP,RoHS
LINK-PP Part Number LPJ19911ADNL
WE Part Number 7498011122AR
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option Yellow/Green
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle Surface Mount
PCB Retaining Post T POST
Package Height (mm) 11.35
Package Length (mm) 21.50
Package Width (mm) 15.50
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs Shielded
Speed 10/100 BASE-T
Temperature -40 TO + 85
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Applications For Terminal User
Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...
