7497111611A , LPJU4281A64NL RJ45 USB Connector 10/100/1000BaseT

Name: 7497111611A , LPJU4281A64NL RJ45 USB Connector 10/100/1000BaseT
Brand: LINK-PP
SKU: 7497111611A
Price: 0.11 USD
Availability: InStock
Rating: 4.8 (197 reviews)

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: 7497111611A

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/60K

Price: $0.11-$24

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                rj45 to usb connector, rj45 naar usb


Spec:	7497111611A	Alternate:	LPJU4281A64NL
Original Munafactuer:	LINK-PP	Application:	10/100/1000 Base-T
Termination:	Solder	LEDs:	Optional
Files:	3D Step IGS PDF	Cross Rf:	LPJU4281A64NL = 7497111611A

Spec:	7497111611A
Alternate:	LPJU4281A64NL
Original Munafactuer:	LINK-PP
Application:	10/100/1000 Base-T
Termination:	Solder
LEDs:	Optional
Files:	3D Step IGS PDF
Cross Rf:	LPJU4281A64NL = 7497111611A

7497111611A , LPJU4281A64NL RJ45 USB Connector 10/100/1000BaseT

7497111611A , LPJU4281A64NL RJ45 USB Connector 10/100/1000BaseT

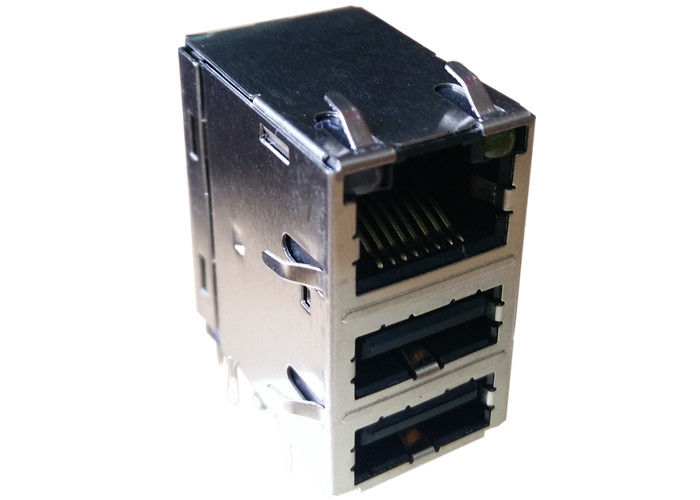

LINK-PP LPJU4281A64NL Rj45+2USB Stacked 3x1 Port
Cross 7497111611A Equivalent
LAN-Übertrager WE-RJ45LAN 10/100/1000 BaseT + USB
RJ-45 needs to be matched FCC standard.
Complies with requirement of IEEE802.3u standards.
Compliance with ROHS requirements.
Operating temperature range: 0℃ to +70℃/ -40℃ to +85℃

LAN-Übertrager WE-RJ45LAN 10/100/1000 BaseT + USB

Turn Ratio(±2%):	TX=1CT:1CT RX=1CT:CT
Inductance OCL	350uH MIN/@ 100KHz,0.1V,8mA DC Bias
Insertion Loss	-1.0dB MAX @ 1-65MHz
Return Loss	-20dB MIN @ 1-10MHz
	-16dB MIN @ 10-30MHz
	-12dB MIN @ 30-60MHz
	-10dB MIN @ 60-100MHz
Cross talk	-40dB MIN @ 1-30MHz
	-35dB MIN @ 30-60MHz
	-30dB MIN @ 60-100MHz
Common Mode Rejection	-30dB MIN @ 1-50MHz
Common Mode Rejection	-20dB MIN @ 50-150MHz
Hipot Test	1500Vrms MIN
Operating Temperature Range	0℃ TO 70℃.
