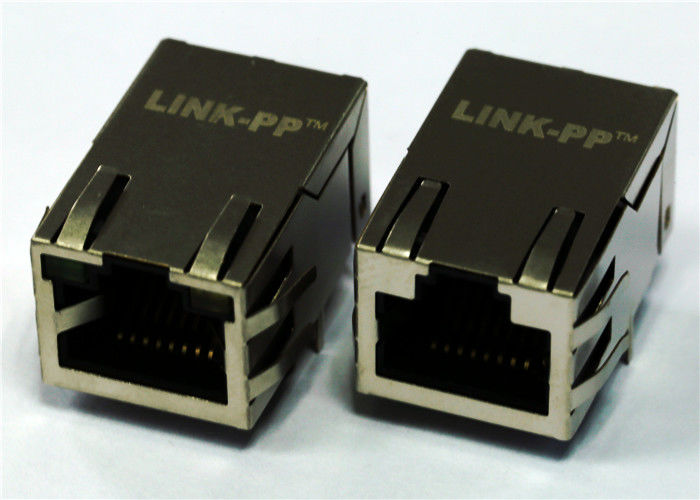

XFATM9R-CTxu1-4M Single Port Rj45 Connector With Integrated Magnetics 10/100M

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: XFATM9R-CTxu1-4M

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 250000-320000/Month

Get Best Price
Highlight:

single port rj45

,

rj45 smd connector

Spec:
XFATM9R-CTxu1-4M
P.N:
LPJ6011AANL
Connector Type:
RJ45 Female
Applications:
10/100 Base-T
Mounting Type:
Through Hole
Orientation:
90~ Angle (Right)
Termination:
Solder
Sampels:
Free
Spec:
XFATM9R-CTxu1-4M
P.N:
LPJ6011AANL
Connector Type:
RJ45 Female
Applications:
10/100 Base-T
Mounting Type:
Through Hole
Orientation:
90~ Angle (Right)
Termination:
Solder
Sampels:
Free
XFATM9R-CTxu1-4M Single Port Rj45 Connector With Integrated Magnetics 10/100M
XFATM9R-CTxu1-4M Single Port Rj45 Connector With Integrated Magnetics 10/100M

XFATM9R-CTxu1-4M
RJ45 Single Port
Single Port Rj45
Rj45 Integrated 10/100 Lan

♦ XFATM9R-CTYG1-4M
♦ XFATM9R-CTGY1-4M
♦ XFATM9R-CTYG1-4M
♦ XFATM9R-CTMM1-4M
♦ XFATM9R-CTGG1-4M



♦ Designed for network interface card application.
♦ Designed to meet IEEE802.3u requirement.
♦ Available in all turn ratios used by LAN ICmanufactures.
♦ Primary center taps available for additional EMIreduction.
♦ Simplest magnetic component to place androute on PCB.
♦ Conserves minimizing PCB space.




Description



XFATM9R-CTxu1-4M Single Port Rj45 Connector With Integrated Magnetics 10/100M



1. Product Type Features:
  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)
2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
  1) Shielded = Yes
4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder
5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length
6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
  1) Connector Style = Jack
8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,
      Wave solder capable to 260°C, Wave solder capable to 265°C
      Reflow-Soldering Optional;
  3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor
10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85
11.Hipot:
     1500Vrms MIN

Applications For Terminal User



Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...



Competitive Advantage



XFATM9R-CTxu1-4M
18 years production experience,
2600 staff,
100% test
Flexible delivery time

Main Customer

Design for Ti , Intel , Samsung ,  Fluke , Jabil  , Flextronics ,Cypress, Freescale,EKF.......

EMS Application



Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
