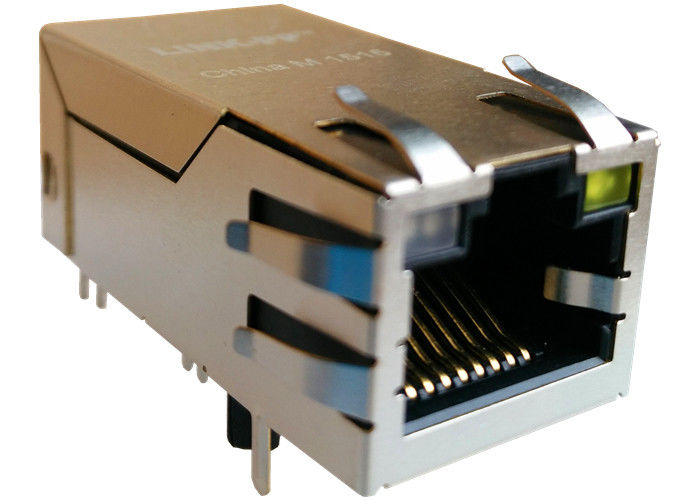

L826-1G1T-06-F Fast RJ45 Magnetic Pin to pin Compatible

Name: L826-1G1T-06-F Fast RJ45 Magnetic Pin to pin Compatible
Brand: LINK-PP
SKU: LPJK0005AWNL
Rating: 4.6 (149 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: LPJK0005AWNL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                stacked rj45 connectors, rj45 magnetic jack


Spec:	L826-1G1T-06-F	P.N:	LPJK0005AWNL
Family:	Rj45 W Magnetic And LEDs	I/O:	10/100Base-Tx
Mounting:	Through Hole	Orientation:	90～ Angle (Right)
Termination:	Solder	Cross Rf:	LPJK0005AWNL = L826-1G1T-06-F

Spec:	L826-1G1T-06-F
P.N:	LPJK0005AWNL
Family:	Rj45 W Magnetic And LEDs
I/O:	10/100Base-Tx
Mounting:	Through Hole
Orientation:	90～ Angle (Right)
Termination:	Solder
Cross Rf:	LPJK0005AWNL = L826-1G1T-06-F

L826-1G1T-06-F Fast RJ45 Magnetic Pin to pin Compatible

Cross L826-1G1T-06-F Fast RJ45 Magnetic Pin to pin Compatible

♦ Designing Model: 0826-1X1T-M1-F Equivalent Specification

♦ 10/100base-t Rj45 pinout
♦ Rj45 Integrated magnetics

♦ Designed for network interface card application.
♦ Designed to meet IEEE802.3u requirement.
♦ Available in all turn ratios used by LAN ICmanufactures.
♦ Primary center taps available for additional EMIreduction.
♦ Simplest magnetic component to place and route on PCB.
♦ Conserves minimizing PCB space.

♦ Mass Production Model:【LPJK0005AWNL 】

MAG.REVERSE LATCH ,

LED optional ; EMI-finger Optional.

Description

0826-1X1T-M1-F Gigabit RJ45 Magnetic Female Jack 1000base t Connector Rj45

1. Product Type Features:
1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)
2. Mechanical Attachment:
1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
1) Shielded = Yes
4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder
5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length
6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
1) Connector Style = Jack
8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,
Wave solder capable to 260°C, Wave solder capable to 265°C
Reflow-Soldering Optional;
3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor
10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85
11.Hipot:
1500Vrms MIN Or More

Ethernet Applications

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...

Advantage

0826-1X1T-M1-F Rj45
20 years production experience,
1600 staff,
100% test
Flexible delivery time

Famous Customer

Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......

EMS Components Sourcing
