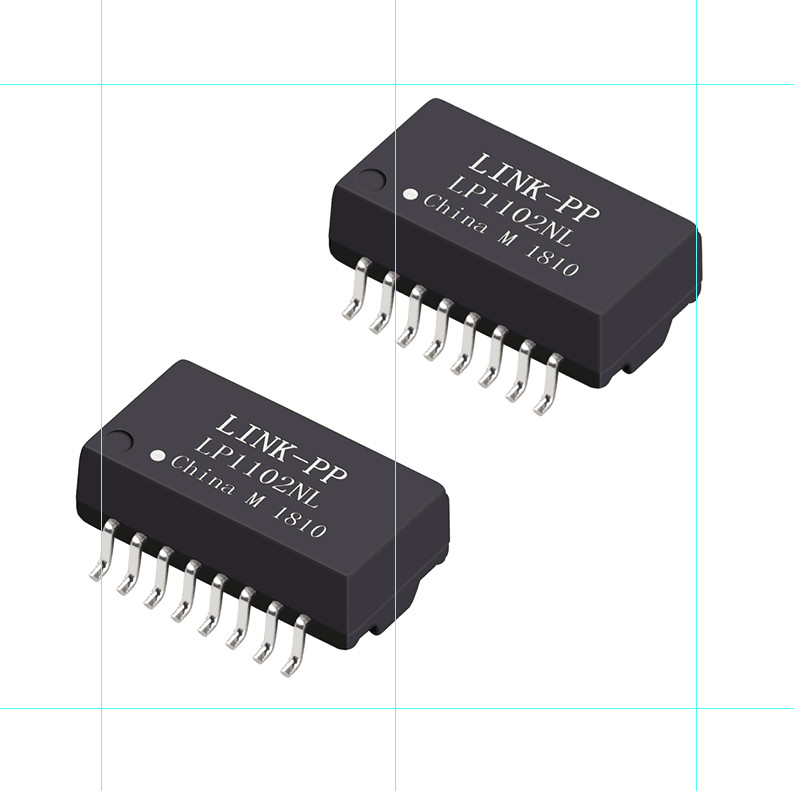

Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: HY601680 / HY601680E
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Speed: |
10/100 Base-T |
Turns Ratio: |
1 : 1 Transmitter, 1 : 1 Receiver |
Number Of Ports: |
Single Port |
Mounting Type: |
Surface Mount |
Case Material: |
DAP |
Solderability: |
240±5℃ Molten Solder For 3±0.5 Seconds |
Speed: |
10/100 Base-T |
Turns Ratio: |
1 : 1 Transmitter, 1 : 1 Receiver |
Number Of Ports: |
Single Port |
Mounting Type: |
Surface Mount |
Case Material: |
DAP |
Solderability: |
240±5℃ Molten Solder For 3±0.5 Seconds |
Elevate your connectivity experience with the HY601680 Surface Mount Transformer Module. It operates seamlessly at 10/100 Base-T speed for reliable data transmission in different network environments. With a balanced 1:1 Turns Ratio for both the transmitter and receiver, this Ethernet Transformer guarantees optimal signal integrity. Adopting a single-port design, it is simple and convenient to operate in various network applications. Facilitates easy integration with its Surface Mount design, allowing for simple installation and flexible placement. Dipped in 240±5℃ Molten Solder For 3±0.5 Seconds, 95% minimum, shall be smooth and bright.

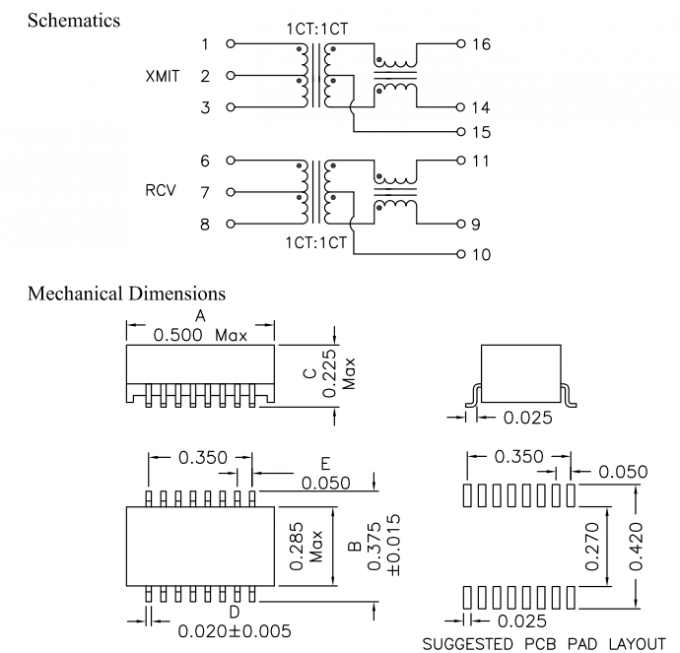

| Items |
10/100Base-T Single Port Transformer Module |
|---|---|
| RoHs Status | RoHS Compliant (Pb Free) |
| Isolation | 1500Vrms 0.5mA 60sec (Primary to Secondary) |
| Meets or Exceeds EEE802.3 standards including 350uH Min OCL with 8mA DC | |
| Insertion Loss | -1.1dB Maximun @300KHz ~ 100MHz |
| Return Loss | -20dB Typical @30NHz -14dB Typical @60MHz -11.5dB Minimum @80MHz |
| Different to Common Mode Rejection | -37dB Typical @30MHz ~ 50MHz -30dB Typical @100MHz |
| Crosstalk | -45dB Typical @1MHz ~ 30MHz -35dB Typical @60MHz ~ 100MHz |
| Case material | DAP |
| Solderability | Dipped in 240 ± 5°C molten solder for 3 ± 0.5 seconds, 95% minimum, shall be smooth and bright. |
| Operating Temperature | 0°C - +70°C |
|
We also offer the following models of Transformer Modules |
|||
|---|---|---|---|
|
749010012A |
7490100110A |
H16105DF |
FPE H16105DF |
|
TS6121C |
H0009NL |
HY601680 |
HY601680E |
|
TG111-E032NYLF |
H1102FNL |
H1102FNLT |
H1102NL |
|
H1102NLT |
749010012 |
HX1188 |
H1601CG |
|
HX1188FNL |
HX1188NL |
HX1260NL |
HX1198NL |
|
1-1840257-8 |
PM45-1040M |
H1102FNL |
SI-50152-F |
|
TG110-050N5RL |
H5084NL |
TG110-6506NXRL |
TG110-RPE17NV6RL |
|
LP82440ANL |
PH163003B |
LP5007NL |
749020023A |
