TG1G-S031NYRL Ethernet Isolation Transformer TG1G-E001NYRL IEEE802.3ab Compliant

Good quality Magnetic RJ45 Jack for sales
Good quality Magnetic RJ45 Jack for sales
WOW , 100% Tested ,Zero Defective

—— TI

LINK-PP is Our Best Supplier in China

—— Intel

Thanks a Lot For Supplying Excellent RJ45 And Transformer ,LINK-PP Deserve the Consideration Worldwidely

—— Cisco

LINK-PP is Flex type A Vendor For All RJ45 Connector and Transformer

—— Flextronics

I'm Online Chat Now

TG1G-S031NYRL Ethernet Isolation Transformer TG1G-E001NYRL IEEE802.3ab Compliant

China TG1G-S031NYRL Ethernet Isolation Transformer TG1G-E001NYRL IEEE802.3ab Compliant supplier

Large Image :  TG1G-S031NYRL Ethernet Isolation Transformer TG1G-E001NYRL IEEE802.3ab Compliant

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: TG1G-S031NYRL / TG1G-E001NYRL

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Item No1: TG1G-S031NYRL Category: Gigabit Isolation Transformer
Turns Ratio: 1CT : 1CT Mounting: Surface Mount
Size / Dimension: 13.72mm L X 15.24mm W Height - Seated (Max): 6.35mm
PN2: TG1G-E001NYRL New PN: LPXXXXNL
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

TG1G-S031NYRL Ethernet Isolation Transformer TG1G-E001NYRL IEEE802.3ab Compliant

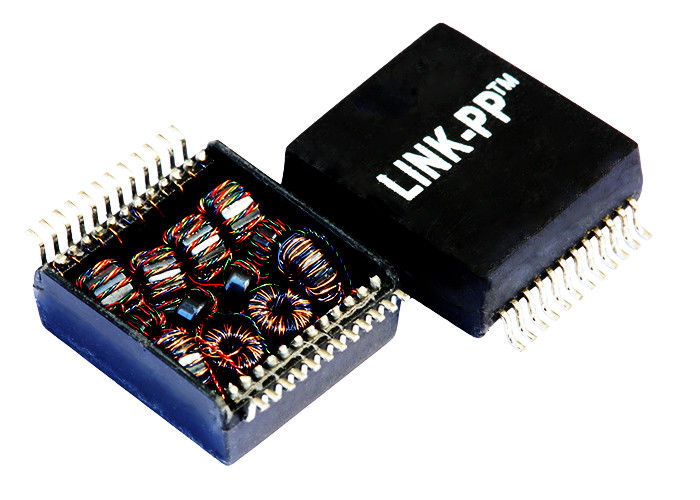

TG1G-S031NYRL / TG1G-E001NYRL Halo Transformer Gigabit LAN SMD Transformer



Gigabit Ethernet Discrete Transformer

Dual Port 10/100BASE-TX  POE/POE+ Transformer
IEEE802.3ab Compliant , 1500Vrms Hi-Pot
Patented Open Frame Construction

Halo TG1G-S031NYRL Gigabit Transformer Cross

Halo TG1G-E001NYRL Transformer Cross



Competitive Advantage



☛ Designer / Manufacturer for 18 years.

☛ 2500 Works, 4 plants

☛ Definitely Pass Fluke network analyzer

☛ Stock or 4 weeks.
☛ Flexible design according to customers' required informations without any exral fee.


Number of ports Applications Turns Ratio Power Over Ethernet
Single GE/ Dual FE 1G Ethernet 1:1 IEEE 802.3



Packaging Tab Direction Mounting Type Contact Finish
Reel , Carton -- SMT/SMD --



Pins Number Shielding Isolation Voltage LED Color
24 Pins -- 1500 Vrms ---


Electrical Specification @25℃


1.Insertion Loss(dB Max):
  0.3-1MHz: -1.1    1-65MHz: -0.8
  65-100MHz: -1.0   100-125MHz: -1.2
2.Return Loss(dB Min @100 OHM):
  0.5-40MHz: -18
  40-100MHz: -12-20LOG(f/80MHz)
3.Crosstalk(dB Min):
  0.3-100MHz: -33-20LOG(f/100MHz)
4.CM TO CM REJ:
  0.3-100MHz: -30dB Min
5.CM TO DM REJ:
  0.3-100MHz: -35dB Min
6.Turns Ratio:
  PRI:SEC= 1CT:1CT  ±2%P7.Inductance(100KHz/0.1V@11mA): 350uH Min
8.Balanced DC Line Current:
   600mA Max @ 57VDC Continuous
9.Hipot: 1500Vrms/0.5mA
10.Operating Temperature: -40℃~+85℃.



NOTES:


1.Gigabit Transformer Modules With Power Over Ethernet Option
2.Meets IEEE 802.3 / af speciffcation
3.For RoHS part add suffix NL
4.RoHS"NL" peak solder rating 260℃%%P5℃.
5.100% Electrical Testing
