Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: TG1G-S031NYRL / TG1G-E001NYRL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Item No1: |
TG1G-S032NYRL |
Category: |
Gigabit Isolation Transformer |
Turns Ratio: |
1CT : 1CT |
Mounting: |
Surface Mount |
Size / Dimension: |
13.72mm L X 15.24mm W |
Height - Seated (Max): |
6.35mm |
Old PN: |
TG1G-S032NYRL |
LINK-PP PN: |
LP5008ANL |
Item No1: |
TG1G-S032NYRL |
Category: |
Gigabit Isolation Transformer |
Turns Ratio: |
1CT : 1CT |
Mounting: |
Surface Mount |
Size / Dimension: |
13.72mm L X 15.24mm W |
Height - Seated (Max): |
6.35mm |
Old PN: |
TG1G-S032NYRL |
LINK-PP PN: |
LP5008ANL |
| TG1G-S032NYRL=> LP5008ANL | Halo Transformer | Gigabit LAN | SMD Transformer |
Gigabit Ethernet Discrete Transformer
Dual Port 10/100BASE-TX POE/POE+ Transformer
IEEE802.3ab Compliant , 1500Vrms Hi-Pot
Patented Open Frame Construction
Halo TG1G-S032NYRL Gigabit Ethernet Transformer
LINK-PP LP5008ANLTransformer Cross
Competitive Advantage
☛ Designer / Manufacturer for 18 years.
☛ 2500 Works, 4 plants
☛ Definitely Pass Fluke network analyzer
☛ Stock or 4 weeks.
☛ Flexible design according to customers' required informations without any exral fee.
| Number of ports | Applications | Turns Ratio | Power Over Ethernet |
| Single GE/ Dual FE | 1G Ethernet | 1:1 | IEEE 802.3 |
| Packaging | Tab Direction | Mounting Type | Contact Finish |
| Reel , Carton | -- | SMT/SMD | -- |
| Pins Number | Shielding | Isolation Voltage | LED Color |
| 24 Pins | -- | 1500 Vrms | --- |
Electrical Specifications @25℃
1.Turns Ratio: 1CT∶1
2.Insertion Loss:
1-100MHz:-1.0dB MAX
3.Return Loss(dB MIN):
1-30MHz:-18 40MHz:-18
50MHz:-16 60-80MHz:-12
100MHz:-10
4.Crosstalk(dB MIN):
30MHz:-45 60MHz:-40
100MHz:-33
5.DCMR(dB MIN):
30MHz:-43 60MHz:-37
100MHz:-33
6.Hipot: 1500Vrms MIN
7.Operating Temperature: -40℃～+85℃.
NOTES:
1.Gigabit Transformer Modules With Power Over Ethernet Option
2.Meets IEEE 802.3 / af speciffcation
3.For RoHS part add suffix NL
4.RoHS"NL" peak solder rating 260℃%%P5℃.
5.100% Electrical Testing
| TG1G-S031NYRL Ethernet Isolation Transformer TG1G-E001NYRL IEEE802.3ab Compliant | |||
|---|---|---|---|
| TG1G-S032NYRL | TG05-2004NARL | FD02-104G1RL | TG1G-E001NYRL |
| TG66-S020NXRL | TG05-2004NCRL | FD12-104G1RL | TG1G-S032NYRL |
| TG1G-S012NZRL | TG1G-S012NZRL | TG1G-S031NYRL | TG1G-E001NYRL |
| TG88-S020NXRL | TG1G-S001NZRL | TG1G-E010NZRL | TG1G-S012NZRL |
| TG89-S020NXRL | LG01-0346N1LF | TG1G-S012NZRL | LP5008ANL |
| TG1G-S012NZRL | TG1G-S032NYRL | TG1G-E001NYRL | TG1G-S012NZRL |
| LP5008ANL | TG1G-S012NZRL | TG1G-S032NYRL | TG1G-S012NZRL |
| TG1G-S032NYRL | LG01-0356N1LF | TG110-S053P2RL | LG01-0506NLF |
| TG1G-S031NYRL | LG01-0856N1LF | TG1G-S032NYRL | TG1G-S012NZRL |
| TG1G-S032NYRL | TG1G-S032NYRL | TG1G-S010NZRL | LG01-0346N1LF |
| TG1G-E001NZRL | TG1G-S001NZRL | TG110-S055J2RL | LP5008ANLL |
| TG1G-S031NYRL | TG1G-E010NZRL | TG1G-E001NZRL | TG42-1406P1RL |
| TG1G-S012NZRL | TG1G-S031NYRL | LP5008ANL | TG1G-S012NZRL |
| TG1G-S032NYRL | TG1G-S010NZRL | TG1G-S012NZRL | TG62-1006P1RL |
| TG1G-S012NZRL | LP5008ANL | TG1G-E010NZRL | TG1G-E001NYRL |

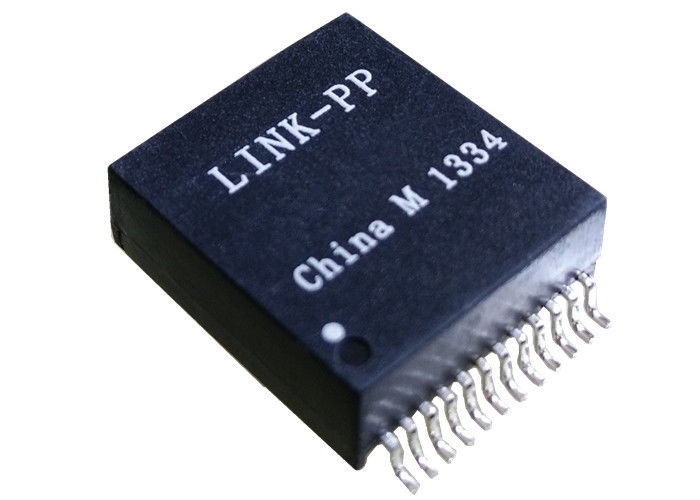

Halo TG1G-S032NYRL Gigabit Ethernet Transformer Single Port LINK-PP LP5008ANL
