TG111-E112NYRL SMD Gigabit Telecom Transformer Single Port 10/100 BASE - TX

China TG111-E112NYRL SMD Gigabit Telecom Transformer Single Port 10/100 BASE - TX supplier

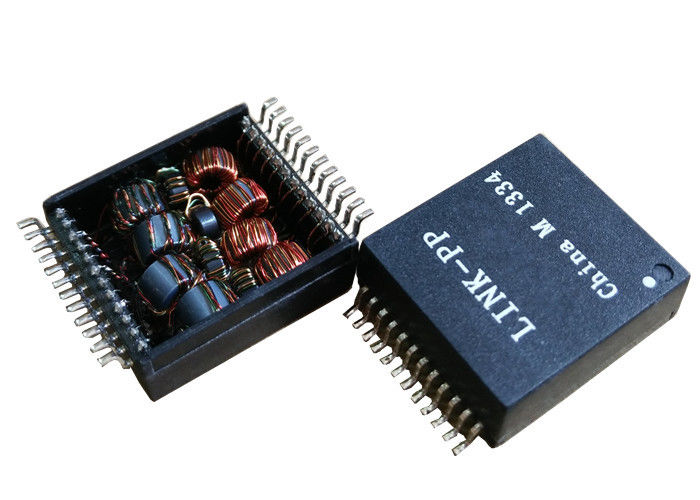

Large Image :  TG111-E112NYRL SMD Gigabit Telecom Transformer Single Port 10/100 BASE - TX

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: TG111-E112NYRL

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Item No1: TG111-E112NYRL Category: Gigabit Isolation Transformer
Turns Ratio: 1CT : 1CT Mounting: Surface Mount
Size / Dimension: 13.72mm L X 15.24mm W Height - Seated (Max): 6.35mm

TG111-E112NYRL SMD Single Port Gigabit or Dual Port 10/100BASE-TX Transformer


TG111-E112NYRL 24Pins Transformer Gigabit Ethernet SMD Transformer



Gigabit Ethernet Discrete Transformer

Dual Port 10/100BASE-TX  POE/POE+ Transformer
IEEE802.3ab Compliant , 1500Vrms Hi-Pot
Patented Open Frame Construction

Halo TG111-E112NYRLGigabit Ethernet Transformer



Competitive Advantage



☛ Designer / Manufacturer for 18 years.

☛ 2500 Works, 4 plants

☛ Definitely Pass Fluke network analyzer

☛ Stock or 4 weeks.
☛ Flexible design according to customers' required informations without any exral fee.


Number of ports Applications Turns Ratio Power Over Ethernet
Single GE/ Dual FE 1G Ethernet 1:1 IEEE 802.3



Packaging Tab Direction Mounting Type Contact Finish
Reel , Carton -- SMT/SMD --



Pins Number Shielding Isolation Voltage LED Color
24 Pins -- 1500 Vrms ---



Electrical Specifications @25℃


1.Turns Ratio: 1CT∶1
2.Insertion Loss:
  1-100MHz:-1.0dB MAX
3.Return Loss(dB MIN):
  1-30MHz:-18    40MHz:-18
  50MHz:-16      60-80MHz:-12
  100MHz:-10
4.Crosstalk(dB MIN):
  30MHz:-45      60MHz:-40
  100MHz:-33
5.DCMR(dB MIN):
  30MHz:-43      60MHz:-37
  100MHz:-33
6.Hipot: 1500Vrms MIN
7.Operating Temperature: -40℃~+85℃.



NOTES:


1.Gigabit Transformer Modules With Power Over Ethernet Option
2.Meets IEEE 802.3 peciffcation
3.For RoHS part add suffix NL
4.RoHS"NL" peak solder rating 260℃%%P5℃.
5.100% Electrical Testing



TG111-E112NYRL SMD Gigabit Telecom Transformer Single Port 10/100 BASE - TX

TG111-E112NYRL SMD Gigabit Telecom Transformer Single Port 10/100 BASE - TX



TG111-E112NYRL SMD Single Port Gigabit or Dual Port 10/100BASE-TX Transformer
