Pulse X2024NLT 10 Base-T Isolation Transformers LP2024NL

China Pulse X2024NLT 10 Base-T Isolation Transformers LP2024NL supplier
Pulse X2024NLT 10 Base-T Isolation Transformers LP2024NL supplier Pulse X2024NLT 10 Base-T Isolation Transformers LP2024NL supplier Pulse X2024NLT 10 Base-T Isolation Transformers LP2024NL supplier Pulse X2024NLT 10 Base-T Isolation Transformers LP2024NL supplier

Large Image :  Pulse X2024NLT 10 Base-T Isolation Transformers LP2024NL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: X2024NLT

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
PN.1: X2024NLT Application: FE Transformer
Turn Ratio: 1:2.5 Pins: 16
Hipot: 1500V Mass Production: LP2024NL
Temperature: -40℃ TO +85℃

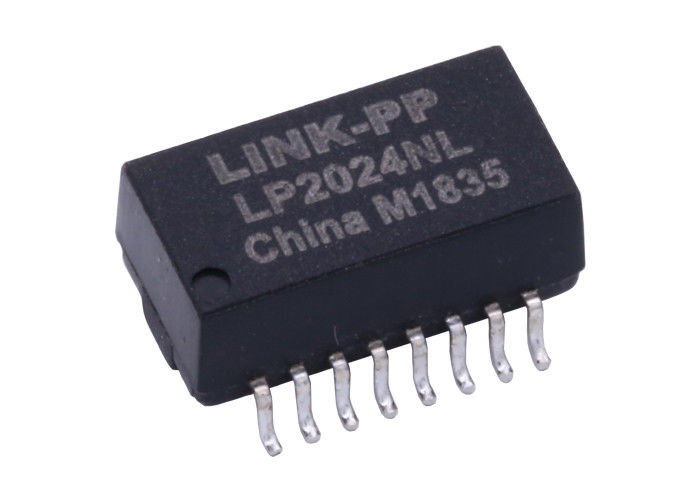

Pulse X2024NLT 10 Base-T Isolation Transformers LP2024NL

Pulse X2024NLT Pulse X2024NL  10/100 Transformer 1:2.5 Turn Ratio Cross LP2024NL



10 Base -T Single Port Isolation Transformer Modules,SMD,Rohs
LINK-PP Part Number LP2024NL
Pulse Fuse Part Number X2024NLT
Speed 10 BASE-T
Number of Ports SINGLE
Application - LAN ETHERNET (NoN PoE)
Package SMD
Temperature -40℃ TO +85℃
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 4
Number of Ports SINGLE
Package Height (Inches) 0.234
Package Height (mm) 5.95
Package Length (Inches) 0.50
Package Length (mm) 12.70
Package Width (Inches) 0.281
Package Width (mm) 7.15
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Electrical Specifications @ 25°C

1.Turns Ratio:
  Transmit=1CT:2.5CT ±5%P  Receivce=1CT:1CT ±5%P2.Sine Wave Inductance OCL:
  @350uH Min  20mVrms, 100KHz
3.Leakage Inductance LL:
  @0.8uH Max  20mVrms, 100KHz
4.Interwinding Capacitance Cww:
  @30pF Max  20mVrms, 100KHz
5.D.C.R: @0.6Ω Max
6.Primary Pins: @6-8,1-3
7.Isolation Hipot: @2000Vrms
8.Operating Temperature: -40℃~+85℃.



NOTES:
      1.For adapter cards,maus,hubs,and motherboard.applications
      2.Designed to meet or exceed IEEE802.3,10Base-T specifications
      3.Available with common mode chokes for EMI suppression
      4.SMT,THT,DIP etc package
      5.RoHS"NL" peak solder rating 260℃.
      6.OCL,Cww and LL are measured at 20 mVrms,100KHz




Pulse X2024NLT 10 Base-T Isolation Transformers LP2024NL



Pulse X2024NLT 10 Base-T ISOLATION TRANSFORMERS LP2024NL
TG57-S020NXRL H2023NL FD02-104R1RL TG110-RP55N5RL
TG58-S020NXRL H2019 FD12-104R1RL H2019
E2023NL TG04-TDK1N1RL FD22-104R1RL TD01-0506KRL
TG62-S020NXRL TG110-RP55N5RL E2023NL H2023NL
X2024NLT TG05-2004NCRL FD12-104G1RL TD01-1006KRL
H2023NL TG04-4004NARL HX2019 TD01-1506KRL
TG88-S020NXRL E2023NL FD02-114GRL LD01-0506KLF
TG89-S020NXRL H2019 X2024NLT X2024NLT
TD01-0756K TG110-RP55N5RL TG110-RP55N5RL H2023NL
TD01-1006K X2024NLT X2024NLT LD01-1006KLF
HX2019 LG01-0356N1LF TG110-S053P2RL LG01-0506NLF
TG01-1006N E2023NL TG110-S055P2RL LG01-0756NLF
TG110-RP55N5RL X2024NLT X2024NLT TG110-RPE5N5RL
TG01-1006P TG04-1006P1 TG110-S055J2RL LD01-0166F4LF
H2023NL HX2019 TG110-RPE5N5RL TG42-1406P1RL



Pulse X2024NLT 10 Base-T Isolation Transformers LP2024NL
