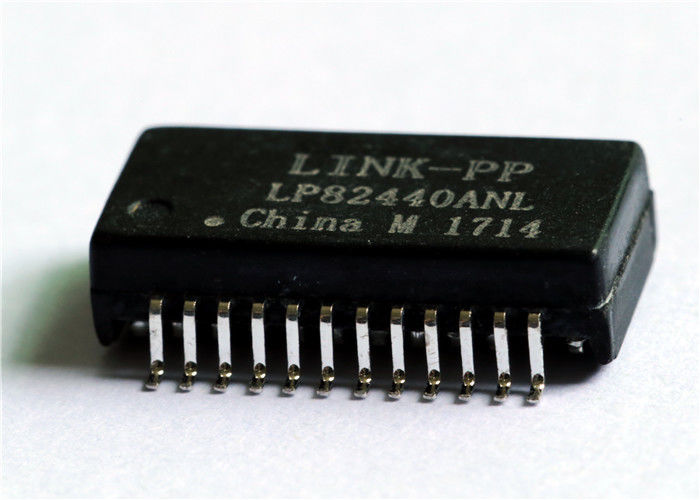

GST5009 LF Equivalent 1000 BASE - T Gigabit MAGNETICS Pin to Pin LP82440NL

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: GST5009 LF

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

gigabit magnetics transformer

,

ethernet transformer

Spec:
GST5009 LF
Substitute:
LP82440ANL
Turns Ratio:
1CT : 1CT
Size / Dimension:
15.1mm L X 10mm W
Hipot:
1500V
Samples:
Free Available
Update:
GST5009 LF = LP82440ANL
Spec:
GST5009 LF
Substitute:
LP82440ANL
Turns Ratio:
1CT : 1CT
Size / Dimension:
15.1mm L X 10mm W
Hipot:
1500V
Samples:
Free Available
Update:
GST5009 LF = LP82440ANL
GST5009 LF Equivalent 1000 BASE - T Gigabit MAGNETICS Pin to Pin LP82440NL
GST5009 LF Equivalent 1000 BASE - T Gigabit MAGNETICS Pin to Pin LP82440NL

Designed for long haul gigabit Ethernet 1000 BASE-T, full duplex applications.
  • Supports 4 pairs of category 5 UTP cable.
  • Cable interface for isolation and low common mode emissions.
  • Compliant with IEEE 802.3ab standard for 1000 BASE-T.
  • Comply with RoHS requirements-whole part No Cd, No Hg, No Cr6+, No PBB and PBDE and No Pb on external pins.
  • Operating temperature range: 0℃ to +70℃. -40℃ to +85℃.
  • Storage temperature range: -25℃ to +125℃.
Electrical Specifications @ 25°C
GST5009 LF Equivalent 1000 BASE - T Gigabit MAGNETICS Pin to Pin LP82440NL 0
Inductance OCL: 350uH Min @ 100KHz 0.2V 8mA DC BIAS,
350mA Current Capability
Leakage Inductance: 0.50uH Max @ 100KHz 0.2V
Interwinding Capacitance: 25PF TYP @ 100KHz 0.2V
DC Resistance: 0.9Ω Max
Turn Ratio: 1CT:1CT±5%
Polarity: 2-23,5-20 ,8-17,11-14In-Phase
Return Loss 0.5-30 MHz - 18dB Min
40.0MHz - 14.4 dB Min
50.0MHz - 13.1 dB Min
60-80MHz - 12.0 dB Min
Cross Talk: 0.50-60MHz - 40dB Min
60-100MHz -35dB Min
Common Mode Rejection: 0.5-100MHz - 20dB Min
Isolation HI-POT: 1500VAC 1mA 1S
Product Type: Green Product & Halogen Free Products


NOTES:

      1.Designed to support application,such as SOHO(ADSL
        modems),LAN-on-Motherboard(LOM),hub and Switches.
      2.With various Turns Ratios.
      3.350uH min OCL with 8mA bias current.
      4.RoHS"NL" peak solder rating 255±5℃.
GST5009 LF 1000 BASE - T MAGNETICS MODULES IEEE 802.3ab Standard for 1000 BASE-T
