PN.1: TS7010 Transformer Type: Isolation And Data Interface
Turns Ratio: 1CT : 1CT Size / Dimension: 12.70mm L X7.15mm W
Hipot: 1500V Mass Production: LP356SMNLE
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

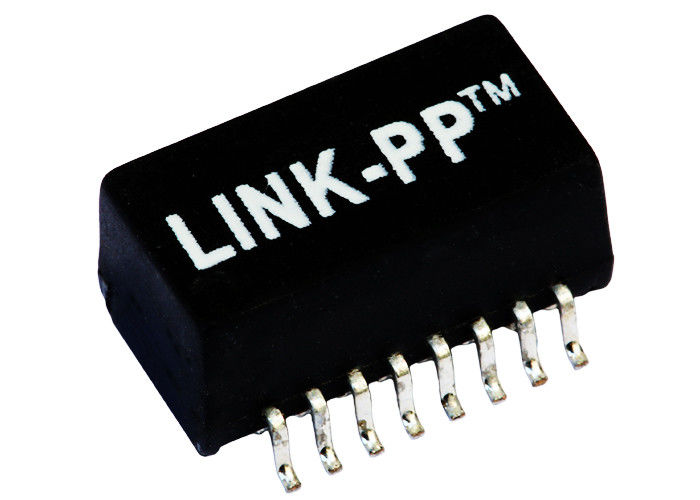

Bothhand TS7010 ETHERNET TRANSFORMER 10 BASE-T SMD With common choke


Bothhand TS7010

Cross LP356SMNLE

10B Transformer

Datasheet/Price/Specification/3D



Feature



16 PIN SMD package to compliant with IEEE 802.3
standard.
With common choke to meet FCC Class B & CISPR B.
Model is available to interface with 10 BASE-T transceivers.
Compatible with IR oven processes.


Electrical Specifications @ 25°C


1.Turns Ratio:
  TX=1CT∶1CT      RX=1CT∶1CT
2.Pri OCL: 350uH MIN
  @100KHz,0.1V,8mADC Bias.
3.Insertion Loss:
  1-100MHz:-1.15dB MAX
4.Return Loss(dB MIN):
  1-30MHz:-18    30-60MHz:-14
  60-80MHz:-12
5.Crosstalk:
  1-100MHz:-38dB MIN
6.CMRR: 1-100MHz:-40dB TYP
7.Hi-Pot: 1500Vrms @0.5mA
8.Operating Temperature: 0℃~70℃/-40℃~+85℃


Bothhand TS7010 ETHERNET TRANSFORMER 10 BASE-T SMD With common choke
H2001DG  C855-2B4R-54 HX2326FNL 0879-2C6R-54
HX1225FNL 7490101120 HX2326NL  HX2326FNL
0826-1X4T-43-F 0810-2H6R-28-F 0811-2X4R-28-F 0854-2X8R-GK-F
HX2326NL  20PT1024X LF 7490101120 0895-2X6R-GK
13F-2010CNL H2001DG  S560-6600-GG S553-6500-43
7490101120 H2001DG  LP41606NL    S553-6500-44
H2001DG  S553-6500-E2 S560-6600-GK 13F-2010CNL
S553-1084-11 LP41654ANL S560-6600-GM S553-6500-55
S553-1506-AE S553-6500-E4 S560-6600-GV S553-6500-58
LP41654ANL S553-6500-E5 H2001DG  7490101120



NOTES:
      1.Designed to support application,such as SOHO(ADSL
        modems),LAN-on-Motherboard(LOM),hub and Switches.
      2.With various Turns Ratios.
      3.RoHS"NL" peak solder rating 260℃%%P5℃.
