LPJ46201AFNL Cross SI-40144 Belfuse MagJack 4x10/100Base-T, Through Hole

Name: LPJ46201AFNL Cross SI-40144 Belfuse MagJack 4x10/100Base-T, Through Hole
Brand: LINK-PP
SKU: SI-40144
Price: 0.11 USD
Availability: InStock
Rating: 4.6 (162 reviews)

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: ISO9001,SGS,UL,CE,REACH163

Model Number: SI-40144

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.11-$12

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 208K/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                multi port connector, modular jacks rj45


Specification:	SI-40144	Part Number:	LPJ46201AFNL
Connector Type:	Quad Port RJ45	Applications:	4x10/100Base-T
Mounting Type:	Through Hole	Orientation:	90～ Angle (Right)
Termination:	Solder	Samples:	Available

Specification:	SI-40144
Part Number:	LPJ46201AFNL
Connector Type:	Quad Port RJ45
Applications:	4x10/100Base-T
Mounting Type:	Through Hole
Orientation:	90～ Angle (Right)
Termination:	Solder
Samples:	Available

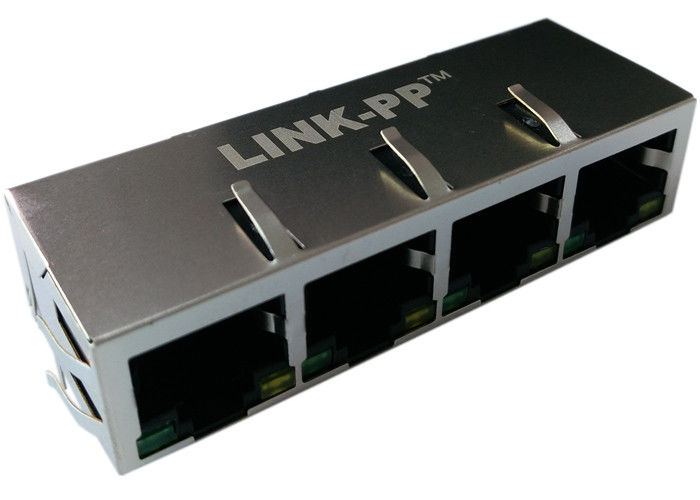

LPJ46201AFNL Cross SI-40144 Belfuse MagJack 4x10/100Base-T, Through Hole

Stewart Connector SI-40144

Quad Port RJ-45

1x4 Fast Jack

10/100 Rj45 Magjack

Modular Connectors - Jacks With Magnetics
10/100 Base-T, AutoMDIX
Through Hole
90° Angle (Right)
Green - Green
Shielded, EMI Finger

Electrical Specification @25℃
1.Turns Ratio(±2%):
TX=1CT:1CT RX=1CT:1CT
2.OCL: 350uH Min
@100KHz,0.1V,8mA DC Bias
3.Insertion Loss:
1～100MHz:-1.0dB Max
4.Return Loss(dB Min):
1～30MHz:-16 30～60MHz:-12
60～80MHz:-10
5.Crosstalk(dB Min):
1～30MHz:-40 30～60MHz:-35
60～100MHz:-30
6.CMR(dB Min):
1～50MHz:-40 50～150MHz:-30
7.Hipot: 1500V AC 6S 1mA
8.Operating Temperature: 0℃～70℃/-40° to +85° CNOTES:

1.Designed to support application,such as SOHO(ADSL modems),

LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3 specification
3.Connector Materials:
Housing:Thermoplastic UL94V-0
Contact/Shield: Copper alloy
Shield plating: Nickel
Contact plating: Gold 6 micro-inches min.In contact area.
4.Wave peak temperature: 260℃,5Sec.

SI-40144 Belfuse
