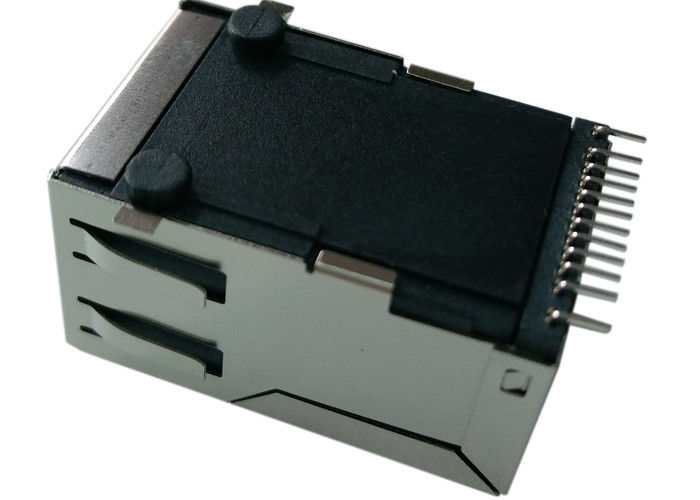

Pulse jack J3006G21DNL |
||||||||||||||||||||||||||||||||
|
Trader Part Number |
J3006G21DNL Pulse |
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Made in China |
SMJ-LPJ3094ABNL |
|||||||||||||||||||||||||||||||
|
Manufacturer |
LINK-PP China |
|||||||||||||||||||||||||||||||
|
Description |
10/100 Modular Jack Rj45 W/LEDs |
|||||||||||||||||||||||||||||||
|
Lead Free Status / RoHS Status |
Lead free / RoHS Compliant |
|||||||||||||||||||||||||||||||
|
Quantity Available |
2,000 PCS or 4 weeks |
|||||||||||||||||||||||||||||||
J3006G21DNL Rj45 Electrical Specifications @25℃
Electrical Specifications @25℃
1.Turns Ratio(± 2%):
TX=1CT:1CT RX=1CT:1CT
2.OCL: 350uH Min
@100KHz,100mV,8mA bias current
3.Insertion Loss:
1-65MHz:-1.0dB Max
4.Return Loss(dB Min @100Ω± 15Ω):
1-10MHz:-20 30MHz:-16
60-80MHz:-12
5.Crosstalk(dB Min):
1-10MHz:-40 30-60MHz:-35
60-100MHz:-30
6.Common Mode Rejection(dB Min):
1-50MHz:-30 50-130MHz:-20
7.Isolation Voltage: 1500Vrms Min
8.Operating Temperature: -40℃～+85℃
Description:
10/100Base-TX surface mount RJ45 single port (1x1) Tab-UP/DOWN with or without LEDs Integrated Magnetics
Connector, designed to support applications such as: Set Top Box and Network Interface Cards (NIC).
Features and Benefits:
RoHS-5 peak reflow temperature rating 235°C
RoHS-6 peak reflow temperature rating 245°C
J0C SMT product, reduced size and low cost alternative to JV series
Electrical Performance Summary:
Meets IEEE 802.3 specification
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
