Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH163
Model Number: XFGIG8NA-CTGxu4-4M
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.11-$12
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 208K/Month
Specifications: |
XFGIG8NA-CTGxu4-4M |
PN: |
LPJG49883AHNL |
Application: |
Gigabit Ethernet Switch |
Shield: |
Shielded Wo/LEDs |
Port: |
1x4 Quad |
Hipot: |
1500V |
Specifications: |
XFGIG8NA-CTGxu4-4M |
PN: |
LPJG49883AHNL |
Application: |
Gigabit Ethernet Switch |
Shield: |
Shielded Wo/LEDs |
Port: |
1x4 Quad |
Hipot: |
1500V |
|
XFGIG8NA-CTGxu4-4M |
||||||||||||||||||||||||||||||||
|
Specification |
XFGIG8NA-CTGxu4-4M |
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Made in China Cross |
LPJG49883AHNL |
|||||||||||||||||||||||||||||||
|
Manufacturer |
LINK-PP China |
|||||||||||||||||||||||||||||||
|

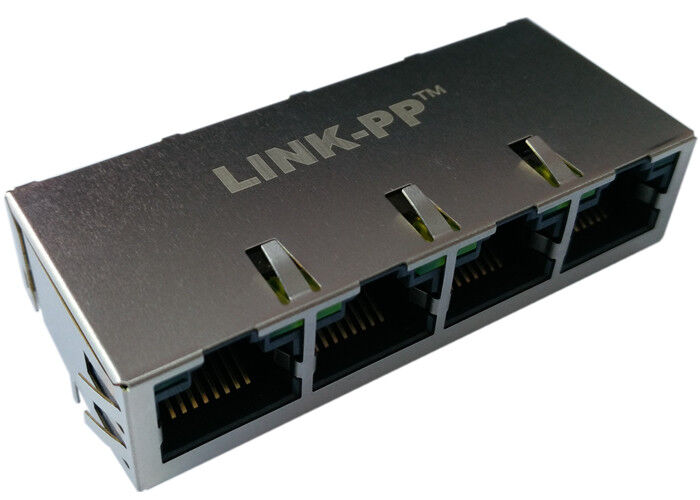

Description |
Gigabit Rj45 Jack Quad port |
|||||||||||||||||||||||||||||||
|
Documents Available |
PDF/3D/Step/IGS/Price/Cross |
|||||||||||||||||||||||||||||||
|
Quantity Available |
2,000 PCS or 4 weeks |
|||||||||||||||||||||||||||||||
XFGIG8NA-CTGxu4-4M Electrical Specifications @25℃
Electrical Specifications @25℃
1.Turns Ratio:(PRI∶SEC) 1CT∶1CT %%P2%P
2.OCL(@100KHz,0.1V,8mA DC BIAS):
350uH MIN
3.Insertion Loss:
100KHz: -1.2dB MAX
1～125MHz: -1.4dB MAX
3.Return Loss:
0.1～40MHz: -15dB MIN
40～100MHz: -12+20LOG(f/80)dB MIN.
4.Crosstalk:
1MHz: -40dB MIN
10～100MHz: -40+10LOG(f/10)dB MIN.
5.CMRR:
2MHz: -50dB MIN
30～200MHz: -15+20LOG(f/200)dB MIN
6.Hipot Test: 1500Vrms MIN
7.Operating Temperature: -40℃ TO +85℃.
Other Specifications:
XFGIG8NA-CTGYG4-4M
XFGIG8NA-CTGGY4-4M
XFGIG8NA-CTGGG4-4M
XFGIG8NA-CTGGM4-4M
XFGIG8NA-CTGYM4-4M
XFGIG8NA-CTGYJ4-4M
XFGIG8NA-CTGJY4-4M
