Home > products > SMT RJ45 Connector > RJMG168268101GR Female Rj45 10/100, Single Port Led1 Yl Led 2 Bi Gr/or

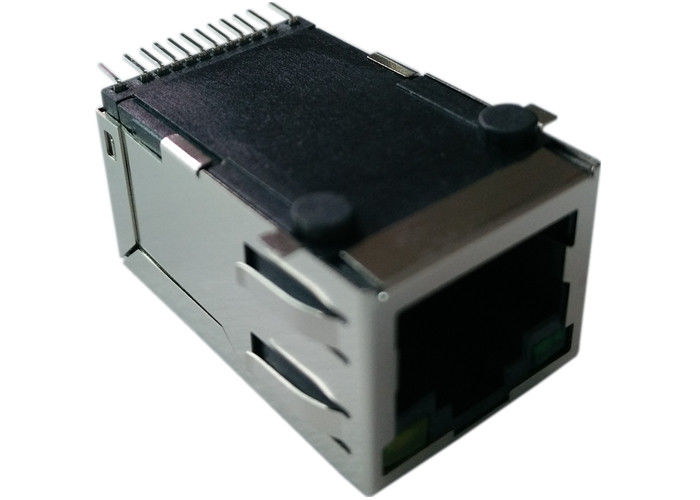

RJMG168268101GR Female Rj45 10/100, Single Port Led1 Yl Led 2 Bi Gr/or

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: ISO9001,SGS,UL,CE,REACH163

Model Number: RJMG168268101GR

Payment & Shipping Terms

Minimum Order Quantity: 200 PCS

Price: Supportive

Packaging Details: Tray & Carton&Reel

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price
Highlight:

surface mount rj45 connector

,

ultra low profile jack

Designe PN#:
RJMG168268101GR
Made In China:
SM-LPJ30XXABNL
Category:
SMT Rj45 Jack
Interface:
10/100Base-T
LED:
Flexible Designed
Samples:
Available
Designe PN#:
RJMG168268101GR
Made In China:
SM-LPJ30XXABNL
Category:
SMT Rj45 Jack
Interface:
10/100Base-T
LED:
Flexible Designed
Samples:
Available
RJMG168268101GR Female Rj45 10/100, Single Port Led1 Yl Led 2 Bi Gr/or

RJMG168268101GR Female Rj45 10/100, Single Port Led1 Yl Led 2 Bi Gr/or



Amphenol RJMG168268101GR
Trader Part Number
RJMG168268101GR
Price Break
Unit Price
Extended Price
1-5
A
-
10-50
B
-
100-500
C-1
-
1,000-2,500
Supportive
Competitive
5,000
Dynamic
Dynamic
10,000
Dynamic
Dynamic
50,000
 Negotiable
Negotiable
100,000
 Negotiable
Negotiable
500,000
 Negotiable
Negotiable
Made in China
SM-LPJ30XXABNL
Manufacturer
LINK-PP China
Description
SMT Rj45 Jack
Documents Available
PDF/3D/Step/IGS/Price/Cross
Quantity Available
200,000 PCS or 4 weeks



RJMG168268101GR ELECTRICAL SPECFICATIONS @
1.Turns Ratio(±2%):
  TX=1CT∶1        RX=1CT∶1CT
2.OCL:
  350uH Min with 8mA bias current
3.Return Loss(dB Min @100Ω±15Ω):
  1-10MHz:-20      30MHz:-16
  60-80MHz:-12
4.Crosstalk(dB Min):
  1-10MHz:-40      30-60MHz:-35
  60-100MHz:-30
5.Insertion Loss:
  1-65MHz:-1.0dB Max
6.Common Mode Rejection(dB Min):
  1-50MHz:-30      50-130MHz:-20
7.Isolation Voltage: 1500Vrms Min
