ARJ12A-MCSD-MU2 Dual Port 10/100 RJ45 Magnetics Angle Right Jack

China ARJ12A-MCSD-MU2 Dual Port 10/100 RJ45 Magnetics Angle Right Jack supplier

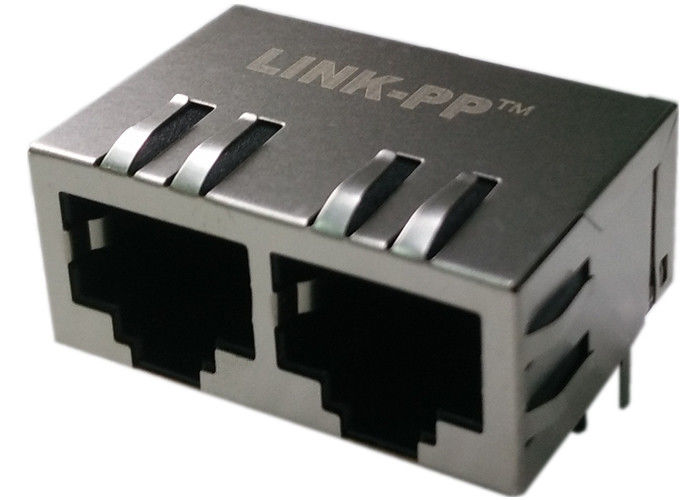

Large Image :  ARJ12A-MCSD-MU2 Dual Port 10/100 RJ45 Magnetics Angle Right Jack

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH163
Model Number: ARJ12A-MCSD-MU2

Payment & Shipping Terms:

Minimum Order Quantity: 200 PCS
Price: Supportive
Packaging Details: Tray & Carton&Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Designe PN#: ARJ12A-MCSD-MU2 Made In China: SM-LPJ26401CNL
Interface: 10/100 Base-T, AutoMDIX LED: Does Not Contain LED
Samples: Supportive File: PDF/3D/ISG/Stp/Step/Datasheet

ARJ12A-MCSD-MU2 Dual Port 10/100 RJ45 Magnetics Angle Right Jack



ARJ12A-MCSD-MU2
Trader Part Number
ARJ12A-MCSD-MU2
Price Break
Unit Price
Extended Price
1-5
A
-
10-50
B
-
100-500
C-1
-
1,000-2,500
Supportive
Competitive
5,000
Dynamic
Dynamic
10,000
Dynamic
Dynamic
50,000
 Negotiable
Negotiable
100,000
 Negotiable
Negotiable
500,000
 Negotiable
Negotiable
Made in China
SM-LPJ26401CNL
Manufacturer
LINK-PP China
Description
Rj45 Dual Port Jack
Documents Available
PDF/3D/Step/IGS/Price/Cross
Quantity Available
200,000 PCS or 4 weeks



ARJ12A-MCSD-MU2 ELECTRICAL SPECFICATIONS: @25℃
1.Turn Ratio(±2%):
  TX=1CT:1         RX=1CT:1
2.Inductance OCL:
  350uH MIN @ 100KHz 0.1V 8mA DC Bias
3.Insertion Loss:
  -1.0dB MAX @ 1.0-100MHz
4.Return Loss:
  -18dB MIN @ 1-30MHz
  -15dB MIN @ 30-60MHz
  -12dB MIN @ 60-80MHz
  -10dB MIN @ 80-100MHz
5.Cross talk:
  -40dB MIN @ 30MHz
  -35dB MIN @ 60MHz
  -30dB MIN @ 100MHz
6.Common Mode Rejection:
  -40dB MIN @ 30MHz
  -35dB MIN @ 60MHz
  -30dB MIN @ 100MHz
7.Hipot: 1500Vrms
