Home > products > Magnetic RJ45 Jack > RJMG201031210NR Telephone/Telecom Magnetic RJ45 Jack Through Hole

RJMG201031210NR Telephone/Telecom Magnetic RJ45 Jack Through Hole

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: LPJK0071AGNL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price
Highlight:

rj45 with magnetics

,

rj45 magnetic jack

Spec:
RJMG201031210NR
Alternate:
LPJK0071AGNL
Orientation:
90° Angle (Right)
Interface:
10/100/1000 Base-T, AutoMDIX
LED:
Green - Yellow
Samples:
Supportive
Spec:
RJMG201031210NR
Alternate:
LPJK0071AGNL
Orientation:
90° Angle (Right)
Interface:
10/100/1000 Base-T, AutoMDIX
LED:
Green - Yellow
Samples:
Supportive

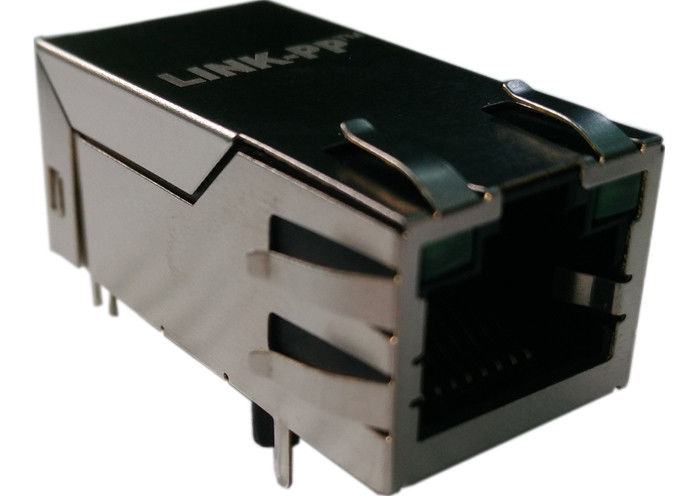

RJMG201031210NR Telephone/Telecom Magnetic RJ45 Jack Through Hole
RJMG201031210NR Telephone/Telecom Magnetic RJ45 Jack Through Hole



LPJK0071AGNL = RJMG201031210NR Pin to Pin Compatible
Trader Part Number
RJMG201031210NR
Price Break
Unit Price
Extended Price
1-5
A
-
10-50
B
-
100-500
C-1
-
1,000-2,500
Supportive
Competitive
5,000
Dynamic
Dynamic
10,000
Dynamic
Dynamic
50,000
 Negotiable
Negotiable
100,000
 Negotiable
Negotiable
500,000
 Negotiable
Negotiable
Cross Made in China
LPJK0071AGNL
Manufacturer
LINK-PP China
Description
Rj45 Gigabyte Ethernet Jack
Documents Available
PDF/3D/Step/IGS/Price/Cross
Quantity Available
200,000 PCS or 4 weeks



RJMG201031210NR ELECTRICAL SPECFICATIONS: @25℃
1.Turn Ratio(%%P2%):
  1CT∶1CT
2.Inductance OCL: 350uH MIN
  @100KHz/0.1V,8mA DC Bias
3.Insertion Loss:
  -1.0dB MAX @ 1.0~65MHz
4.Return Loss:
  -20dB MIN @ 1~10MHz
  -16dB MIN @ 10~30MHz
  -12dB MIN @ 30~60MHz
  -10dB MIN @ 60~100MHz
5.Cross talk:
  -40dB MIN @ 1~30MHz
  -35dB MIN @ 30~60MHz
  -30dB MIN @ 60~100MHz
6.Common Mode Rejection:
  -30dB MIN @ 1~50MHz
  -20dB MIN @ 50~150MHz
7.Hipot Test: 1500Vrms MIN
