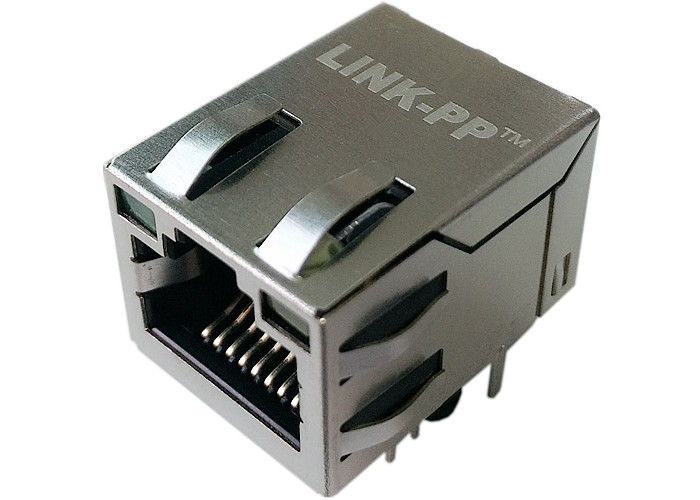

HFJT1-RP48-L12RL Modular Connectors 10/100 POE Tab UP 1x1 RJ45 G/Y LED

Name: HFJT1-RP48-L12RL Modular Connectors 10/100 POE Tab UP 1x1 RJ45 G/Y LED
Brand: LINK-PP
SKU: HFJT1-RP48-L12RL
Price: 0.09 USD
Availability: InStock
Rating: 4.8 (184 reviews)

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: ISO9001,SGS,UL,CE,REACH163

Model Number: HFJT1-RP48-L12RL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 60PCS/Tray,22Trays=1320pcs/Carton=37*30*30CM=10KG

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                poe rj45 pinout, dual rj45 jack


Specification:	HFJT1-RP48-L12RL	Part No:	LPJ16642AENL
Orientation:	90° Angle (Right)	Interface:	10/100 Base-T, AutoMDIX
Indicator:	LED Flexible	Samples:	Available

Specification:	HFJT1-RP48-L12RL
Part No:	LPJ16642AENL
Orientation:	90° Angle (Right)
Interface:	10/100 Base-T, AutoMDIX
Indicator:	LED Flexible
Samples:	Available

HFJT1-RP48-L12RL Modular Connectors 10/100 POE Tab UP 1x1 RJ45 G/Y LED

LPJ16642AENL Cross HFJT1-RP48-L12RL

Specification

HFJT1-RP48-L12RL

Price Break	Unit Price	Extended Price
1-5	A	-
10-50	B	-
100-500	C-1	-
1,000-2,500	Supportive	Competitive
5,000	Dynamic	Dynamic
10,000	Dynamic	Dynamic
50,000	Negotiable	Negotiable
100,000	Negotiable	Negotiable
500,000	Negotiable	Negotiable

Part No

LPJ16642AENL

Manufacturer

LINK-PP China

Description

POE RJ45 With Rectifier Bridge

Documents Available

PDF/3D/Step/IGS/Price/Cross

Quantity Available

200,000 PCS or 4 weeks

POE RJ45 Connector HFJT1-RP48-L12RL ELECTRICAL SPECFICATIONS: @25℃
1.Turn Ratio(±2%):
1CT:1CT
2.Inductance OCL:
350uH MIN @ 100KHz 0.1V 8mA DC Bias
3.Insertion Loss:
-1.0dB MAX @ 1.0-100MHz
4.Return Loss:
-18dB MIN @ 1-30MHz
-15dB MIN @ 30-60MHz
-12dB MIN @ 60-80MHz
-10dB MIN @ 80-100MHz
5.Cross talk:
-40dB MIN @ 30MHz
-35dB MIN @ 60MHz
-30dB MIN @ 100MHz
6.Common Mode Rejection:
-40dB MIN @ 30MHz
-35dB MIN @ 60MHz
-30dB MIN @ 100MHz
7.Hipot: 1500Vrms
