Home > products > Discrete Magnetic Transformers > PA4065NL FORWARD Lan Isolation Transformer High Frequency Wire Wound

PA4065NL FORWARD Lan Isolation Transformer High Frequency Wire Wound

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: PA4065NL

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

ethernet isolation transformer

,

lan discrete transformer

Pulse PN:
PA4065NL
Cross In China:
LPA4065ANL
Family:
FORWARD TRANSFORMER
Mounting:
SMD
Pins:
10 Pins
Samples:
Free Available
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
Pulse PN:
PA4065NL
Cross In China:
LPA4065ANL
Family:
FORWARD TRANSFORMER
Mounting:
SMD
Pins:
10 Pins
Samples:
Free Available
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
PA4065NL FORWARD Lan Isolation Transformer High Frequency Wire Wound

PA4065NL FORWARD Transformer LPA4065ANL High Frequency Wire Wound Transformer

Pri. Inductance : (1-2) 100.5µH ±10%
Lk. Inductance : (1-2) with (4, 5, 6, 7, 8, 9, 10) shorted 0.88µH MAX
DCR :

(1-2) 75mΩ MAX
(6, 7-9, 10) 40mΩ MAX
(4-5) 410mΩ MAX
Hi-Pot : Pri-Sec 1500Vrms
K1 Factor : 27.0

Power Range: up to 60W
Height: 12.7mm Max
Footprint: 17.7mm x 14.0mm Max
Toplogy: Forward and Flyback

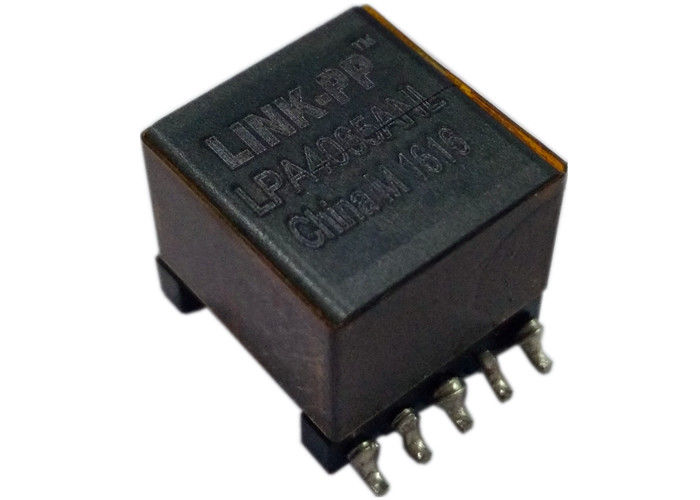

PA4065NL FORWARD Lan Isolation Transformer High Frequency Wire Wound 0 PA4065NL FORWARD Lan Isolation Transformer High Frequency Wire Wound 1
PA4065NL FORWARD Transformer LPA4065ANL High Frequency Wire Wound Transformer
