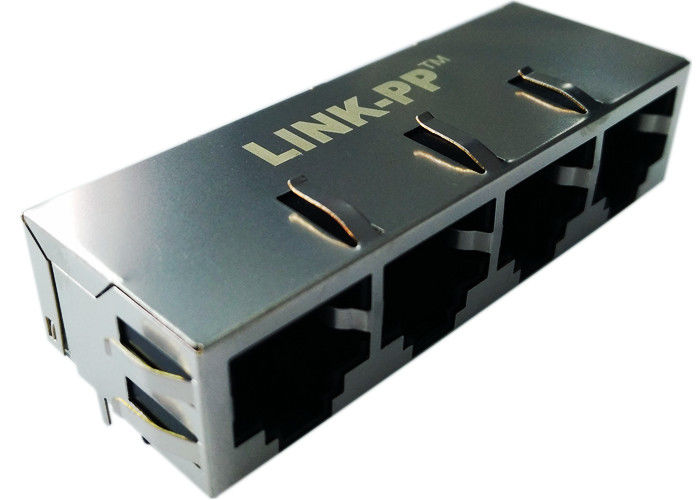

RB4-Q13LT8KQ Quad Port RJ45 1X4 Tab Down , LPJ46204AENL 10/100Mbps

Name: RB4-Q13LT8KQ Quad Port RJ45 1X4 Tab Down , LPJ46204AENL 10/100Mbps
Brand: LINK-PP
SKU: RB4-Q13LT8KQ
Price: 0.11 USD
Availability: InStock
Rating: 4.8 (106 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: SGS, UL,CE, ISO9001:2008,REACH

Model Number: RB4-Q13LT8KQ

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.11-$12

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 208K/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                multi port connector, dual rj45 jack


Specification:	RB4-Q13LT8KQ	Cross PN:	LPJ46204AENL
Ethernet:	10/100Mbps	Gender:	Female
Mouting:	Thru-hole	Samples:	Available

Specification:	RB4-Q13LT8KQ
Cross PN:	LPJ46204AENL
Ethernet:	10/100Mbps
Gender:	Female
Mouting:	Thru-hole
Samples:	Available

RB4-Q13LT8KQ Quad Port RJ45 1X4 Tab Down , LPJ46204AENL 10/100Mbps

RB4-Q13LT8KQ Quad Port RJ45 1X4 Tab Down , LPJ46204AENL 10/100Mbps

Cross RB4-Q13LT8KQ
10/100Mbps Quad Port Jack
1X4 Tab-down Shield W/LED
Through hole RJ45 modular jack
21.3mm length RJ45 Magjack
PN# LPJ46204AENL

1.Turns Ratio(±2%):
TX=1CT:1CT

RX=1CT:1CT
2.OCL: 350uH Min
@100KHz,0.1V,8mA DC Bias
3.Insertion Loss:
1～100MHz:-1.0dB Max
4.Return Loss(dB Min):
1～30MHz:-16

30～60MHz:-12
60～80MHz:-10
5.Crosstalk(dB Min):
1～30MHz:-40

30～60MHz:-35
60～100MHz:-30
6.CMR(dB Min):
1～50MHz:-40

50～150MHz:-30
7.Hipot: 1500V AC 6S 1mA
8.Operating Temperature: 0℃～70℃.
