LPJ1029AWNL POE Connector Rj45 Jack 10/100Mbps , Android IPC Ethernet Port

Name: LPJ1029AWNL POE Connector Rj45 Jack 10/100Mbps , Android IPC Ethernet Port
Brand: LINK-PP
SKU: LPJ1029AWNL
Price: 0.09 USD
Availability: InStock
Rating: 4.8 (125 reviews)

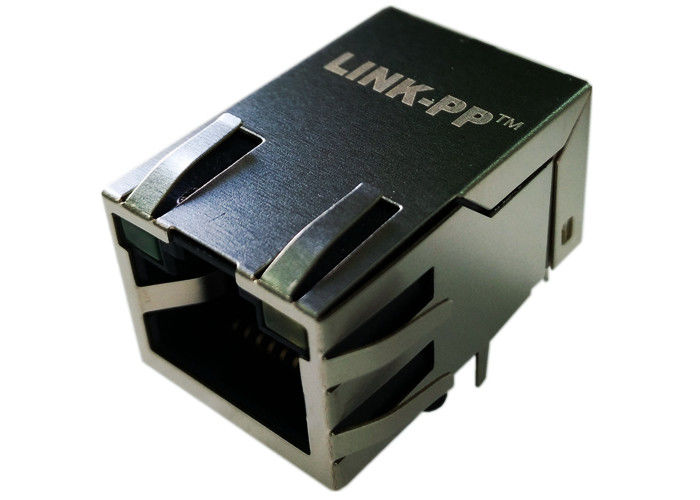

Large Image : LPJ1029AWNL POE Connector Rj45 Jack 10/100Mbps , Android IPC Ethernet Port

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	LINK-PP
Certification:	ISO9001,SGS,UL,CE,REACH
Model Number:	LPJ1029AWNL

Payment & Shipping Terms:

Minimum Order Quantity:	50/500/1000/25K
Price:	$0.09-$1.85
Packaging Details:	50PCS/Tray,24Trays=1200pcs=373030CM=11KG/Carton
Delivery Time:	Stock
Payment Terms:	TT,NET30/60/90 Days
Supply Ability:	3000000/Month

Contact Now

Detailed Product Description

Specification:	LPJ1029AWNL	Part NO:	LPJ1029AWNL
Ethernet:	1x10/100Mbps Ethernet Power	Mounting:	Thru-hole
Indicator:	LED	Samples:	Available
Highlight:	poe rj45 pinout , rj45 power over ethernet

LPJ1029AWNL POE Connector Rj45 Jack 10/100Mbps , Android IPC Ethernet Port

LPJ1029AWNL IEEE 802.3af PoE
Power Over Ethernet Rj45 Magnetics Module
Rj45 Power Over Ethernet Pinout
LPJ1029AWNL Right Angle Mod Jack
1 x 10/100 Mbit Ethernet Power Support
Lan Connectors Rj45 Led

Rj45 Power Over Ethernet IEEE802.3af
Electrical Specification @25℃ 1.Turns Ratio(±2%): TX=1CT∶1CT RX=1CT∶1CT 2.Insertion Loss: 0.3～100MHz: -1.5dB Max 3.Return Loss: 1～30MHz:-16dB Min 60～80MHz:-10dB Min 4.Crosstalk: 1～100MHz:-30dB Min 5.OCL(0.1V,100KHz,20mA DC Bias): 350uH Min 6.Hipot: 1500Vrms 7.Operating Temperature: 0℃～70℃
