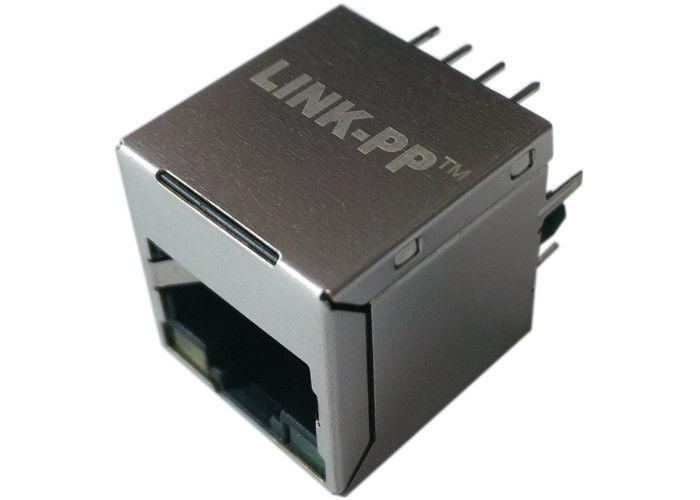

LPJD0514BENL RJ45 Single Port , IEEE 802.3af Power over Ethernet (PoE) , 10/100M

Name: LPJD0514BENL RJ45 Single Port , IEEE 802.3af Power over Ethernet (PoE) , 10/100M
Brand: LINK-PP
SKU: LPJD0514BENL
Price: 0.09 USD
Availability: InStock
Rating: 4.8 (126 reviews)

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: LPJD0514BENL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 250000-320000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                single port rj45, rj45 smd connector


Specification:	LPJD0514BENL	Part No:	LPJD0514BENL
Ethernet:	10/100Mbps Power Ethernet	Turn Ratio:	1CT:1CT
Mounting:	Straight 180 Degree	Samples:	Available

Specification:	LPJD0514BENL
Part No:	LPJD0514BENL
Ethernet:	10/100Mbps Power Ethernet
Turn Ratio:	1CT:1CT
Mounting:	Straight 180 Degree
Samples:	Available

LPJD0514BENL RJ45 Single Port , IEEE 802.3af Power over Ethernet (PoE) , 10/100M

LPJD0514BENL RJ45 Single Port
IEEE 802.3af Power over Ethernet (PoE)
1 x 10/100 Mbit Ethernet
RJ45 Shielded Socket
Top Entry Rj45 Jack
Industrial Model # LPJD4514BENL
Designed to handle 350mA-600mA DC for PoE.

Electronics Specification @25℃
1.TURNS RATIO(%%P2%):
TX=1CT:1CT RX=1CT:1CT
2.Inductance OCL: 350uH MIN
@100KHz/0.1V,8mA DC Bias
3.DCR:1.0 OHMS MAX
4.HIPOT: 1500Vrms MIN
5.INSERTION LOSS:
-1.2dB MAX @ 1MHz TO 100MHz
6.RETURN LOSS:
-16dB MIN @ 1MHz TO 30MHz
-14dB MIN @ 40MHz
-13dB MIN @ 50MHz
-12dB MIN @ 60MHz TO 80MHz
7.CROSS TALK:
-43dB MIN @ 30MHz
-37dB MIN @ 60MHz
-33dB MIN @ 100MHz
8.COMMON TO COMMON MODE REJECTION:
-30dB MIN @ 1MHz TO 50MHz
-20dB MIN @ 50MHz TO 150MHz
9.HIPOT: 1000VAC/0.5mA/60Sec.
10.OPERATING TEMPERATURE: 0℃～70℃.

LPJD0514BENL RJ45 Single Port , IEEE 802.3af Power over Ethernet (PoE) , 10/100M 0
