LPJD0115BGNL Magnetic RJ45 Jack 1 x 10/100 Mbit Ethernet POE functionality

China LPJD0115BGNL Magnetic RJ45 Jack 1 x 10/100 Mbit Ethernet POE functionality supplier

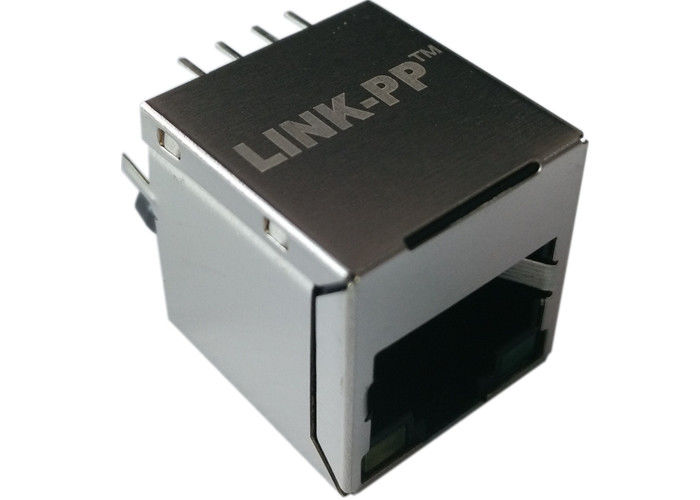

Large Image :  LPJD0115BGNL Magnetic RJ45 Jack 1 x 10/100 Mbit Ethernet POE functionality

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: LPJD0115BGNL

Payment & Shipping Terms:

Minimum Order Quantity: 200/500/1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 4600K.PCS/Month
Contact Now
Detailed Product Description
Specification: LPJD0115BGNL Part No: LPJD0115BGNL
Ethernet: 10/100Mbps Power Ethernet Turn Ratio: 1CT:1
Mounting: Straight 180 Degree Samples: Available

LPJD0115BGNL Magnetic RJ45 Jack 1 x 10/100 Mbit Ethernet POE functionality

  1. Ethernet rj-45 Port compatible With 10/100 mbps having POE functionality Modular jack
  2. IEEE 802.3af Power over Ethernet (PoE)
  3. 1 x 10/100 Mbit Ethernet
  4. RJ45 Shielded Socket
  5. Top Entry Rj45 Jack
  6. Industrial Model # LPJD4115BGNL
  7. Designed to handle 350mA-600mA DC for PoE.

Electronics Specification @25℃
1.TURNS RATIO(P2%):
TX=1CT:1

RX=1CT:1
2.Inductance OCL: 350uH MIN
@100KHz/0.1V,8mA DC Bias
3.DCR:1.0 OHMS MAX
4.HIPOT: 1500Vrms MIN
5.INSERTION LOSS:
-1.2dB MAX @ 1MHz TO 100MHz
6.RETURN LOSS:
-16dB MIN @ 1MHz TO 30MHz
-14dB MIN @ 40MHz
-13dB MIN @ 50MHz
-12dB MIN @ 60MHz TO 80MHz
7.CROSS TALK:
-43dB MIN @ 30MHz
-37dB MIN @ 60MHz
-33dB MIN @ 100MHz
8.COMMON TO COMMON MODE REJECTION:
-30dB MIN @ 1MHz TO 50MHz
-20dB MIN @ 50MHz TO 150MHz
9.HIPOT: 1000VAC/0.5mA/60Sec.
10.OPERATING TEMPERATURE: 0℃~70℃



LPJD0115BGNL Magnetic RJ45 Jack 1 x 10/100 Mbit Ethernet POE functionality

LPJD0115BGNL Magnetic RJ45 Jack 1 x 10/100 Mbit Ethernet POE functionality

LPJD0115BGNL Magnetic RJ45 Jack 1 x 10/100 Mbit Ethernet POE functionality LPJD0115BGNL Magnetic RJ45 Jack 1 x 10/100 Mbit Ethernet POE functionality
