3500V rms Isolation Transformer LP6004NL Gigabit 10/100/1000M 24 Pins SMD XFMR

China 3500V rms Isolation Transformer LP6004NL Gigabit 10/100/1000M 24 Pins SMD XFMR supplier

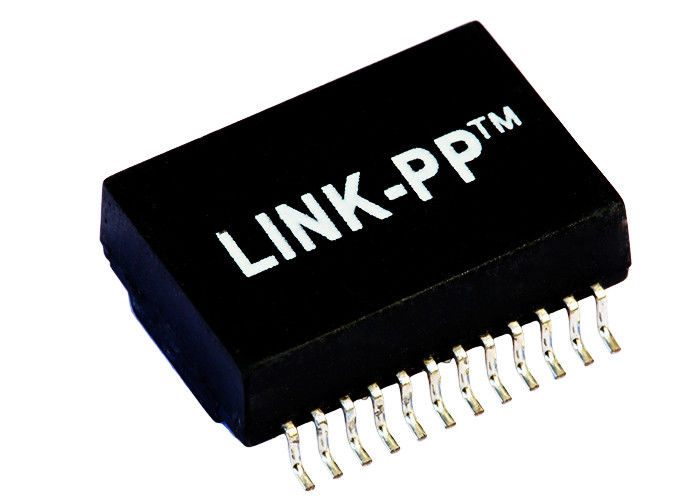

Large Image :  3500V rms Isolation Transformer LP6004NL Gigabit 10/100/1000M 24 Pins SMD XFMR

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: LP6004NL

Payment & Shipping Terms:

Minimum Order Quantity: 1400
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: Paypal , T/T, Western Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Specification: LP6004NL Part Number: LP6004NL
Interface: Gigabit Mounting: Surface Mounting
Pins: 24 Pins Samples: Free Available
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

3500V rms Isolation Transformer LP6004NL Gigabit 10/100/1000M , 24Pins SMD XFMR

  • 3500V rms Isolation Transformer
  • 5000V Max Isolation Transformer high-voltage
  • LINK-PP LP6004NL Single Port XFMR
  • Gigabit 10/100/1000Mbps , 24Pins SMD
  • Lan Discrete Transformer Modules
3500V rms Isolation
Electrical Specifications @25℃
1.Insertion Loss:
1-100MHz:-1.0dB MAX
2.Return Loss(dB MIN @100Ω):
1-30MHz:-18 40MHz:-18
50MHz:-16 60-80MHz:-12
100MHz:-10
3.Crosstalk(dB MIN):
30MHz:-45 60MHz:-40
100MHz:-35
4.DCMR(dB MIN):
30MHz:-43 60MHz:-37
100MHz:-33
5.Hipot: 3500V rms MIN
6.Operating Temperature: -40℃~85℃
3500V rms Isolation Transformer LP6004NL Gigabit 10/100/1000M 24 Pins SMD XFMR
3500V rms Isolation Transformer LP6004NL Gigabit 10/100/1000M 24 Pins SMD XFMR 3500V rms Isolation Transformer LP6004NL Gigabit 10/100/1000M 24 Pins SMD XFMR
3500V rms Isolation Transformer LP6004NL Gigabit 10/100/1000M , 24Pins SMD XFMR
