Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: TS8121CX HF
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specification: |
TS8121CX HF |
Part No: |

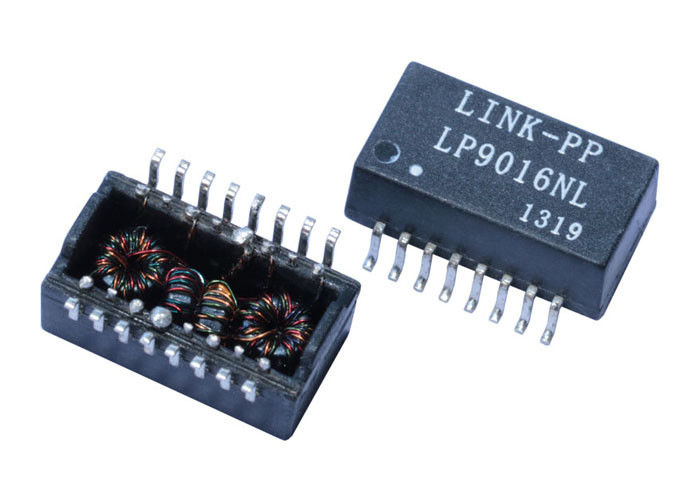

LP9016NL |
Ethernet: |
1x10/100Mbps |
Mounting Type: |
Surface |
Pins: |
16 Pins |
Samples: |
Free Available |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specification: |
TS8121CX HF |
Part No: |
LP9016NL |
Ethernet: |
1x10/100Mbps |
Mounting Type: |
Surface |
Pins: |
16 Pins |
Samples: |
Free Available |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
| Electrical Specifications: @25℃ 1. Turns Ratio: PIN(1-3):PIN(16-14)=1:1 PIN(6-8):PIN(11-9)=1:1 2. Primary Inductance PIN(1-3)&PIN(6-8): 350uH MIN.@8mA DC Bias/100KHz/100mV 3. Insertion Loss: 1-100MHz:-1.0dB Max 4.Return Loss: 1-30MHz:-16dB Min 30-60MHz:-[16-20log(f/30MHz)]dB Typ 60-80MHz:-10dB Min 5.Crosstalk: 1-60MHz:-40dB Typ 60-100MHz:-35dB Typ 6.CMRR: 1-60MHz:-45/-40dB Min 60-100MHz:-40/-35dB Min 7.Isolation Voltage: 1500Vrms 8.Operating Temperature: 0℃～+70℃. |
|
