HX5019FNL Low Profile Gigabit Ethernet Transformer SMD 24Pins, LP82473ANL

Name: HX5019FNL Low Profile Gigabit Ethernet Transformer SMD 24Pins, LP82473ANL
Brand: LINK-PP
SKU: HX5019FNL
Price: 0.06 USD
Availability: InStock
Rating: 4.5 (191 reviews)

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: HX5019FNL

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                10/100base-t magnetics, gigabit magnetics transformer


Specification:	HX5019FNL	Part No:	LP5014NL
Family:	2x 10/100/1000Mbps Ethernet	Mounting:	SMD
Pins:	48 Pins	Samples:	Free Available

Specification:	HX5019FNL
Part No:	LP5014NL
Family:	2x 10/100/1000Mbps Ethernet
Mounting:	SMD
Pins:	48 Pins
Samples:	Free Available

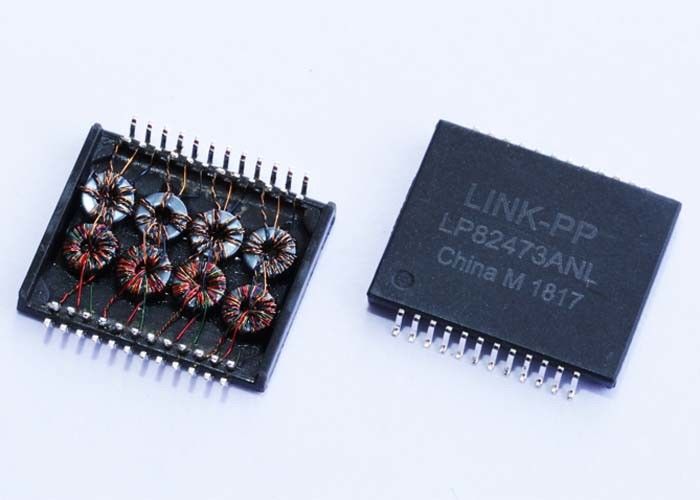

HX5019FNL Low Profile Gigabit Ethernet Transformer SMD 24Pins, LP82473ANL

HX5019FNL Low Profile Gigabit Ethernet Transformer SMD 24Pins, LP82473ANL

LINK-PP LP82473ANL SMD Single Port Gigabit Isolation Low Profile Modules
Cross HX5019FNL / HX5019FNLT 10/100/1000BASE-TX
Gigabit Ethernet Transformer Connection Single Port Transformer Module
24Pins Surface Mounting to 1:1 Transceiver
Compatible with all leading Phy Manufacturers’ Gigabit IC’s
1CT:1CT

lectrical Specification @25℃ 1. Insertion Loss: 1-100MHz:-1.4dB Max 2. Return Loss(dB Min): 1-30MHz:-16 40MHz:-14.4 50MHz:-13.1 60-80MHz:-12 100MHz:-10 3. Crosstalk(dB Min): 30MHz:-43.5 60MHz:-37.5 100MHz:-33 4. DCMR(dB Min): 30MHz:-45 60MHz:-40 100MHz:-35 5. Hipot: 1500Vrms Min 6. Operating Temperature: -40℃～+85℃.
