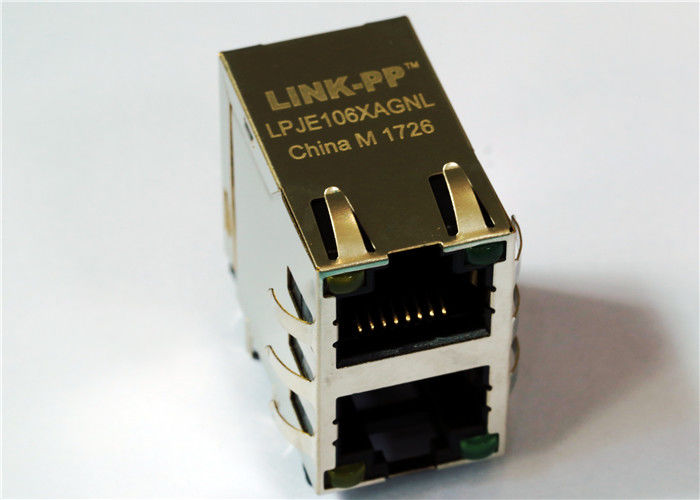

615016245421 Stacked RJ45 2x1 Port LPJE106XAGNL TAB UP AND TAB DOWN

Name: 615016245421 Stacked RJ45 2x1 Port LPJE106XAGNL TAB UP AND TAB DOWN
Brand: LINK-PP
SKU: 615016245421
Price: 0.11 USD
Availability: InStock
Rating: 5 (192 reviews)

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: 615016245421

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/60K

Price: $0.11-$24

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                stacked rj45 connectors, rj45 usb connector combo


Specification:	615016245421	Part No:	LPJE106XAGNL
Category:	Cat3/5/5e	Mounting:	Thru-hole
Termination:	Solder	Samples:	Available

Specification:	615016245421
Part No:	LPJE106XAGNL
Category:	Cat3/5/5e
Mounting:	Thru-hole
Termination:	Solder
Samples:	Available

615016245421 Stacked RJ45 2x1 Port LPJE106XAGNL TAB UP AND TAB DOWN

615016245421 Stacked RJ45 2x1 Port LPJE106XAGNL TAB UP AND TAB DOWN

LINK-PP LPJE106XAGNL
Cross 615016245421
HORIZONTAL SHIELDED RJ-45 DUAL STACKED PORT WITH LED
WITH EMI PANEL FINGER
8P8C MODULAR JACK TAB UP AND TAB DOWN

TECHNICAL CHARACTERISTICS
MATERIAL
INSULATOR MATERIAL: PBT
FLAMMABILITY RATING: UL94-V0
COLOR: BLACK
CONTACT MATERIAL: COPPER ALLOY
CONTACT TYPE: STAMPED
CONTACT PLATING: GOLD
SHIELDING: BRONZE NI PLATED
QUALITY CLASS: 500 MATING CYCLES
LED COLOR
LED 1: GREEN
LED 2: YELLOW
ENVIRONMENTAL
OPERATING TEMPERATURE: –40 °C UP TO 85 °C
COMPLIANCE: LEAD FREE AND ROHS
ELECTRICAL
CURRENT RATING: 1.5 A
WORKING VOLTAGE: 120 VAC
INSULATION RESISTANCE: >500 MΩ
WITHSTANDING VOLTAGE: 1 000 VAC/MIN
CONTACT RESISTANCE: 20 mΩ MAX
STANDARD
CERTIFIED: E324776
SOLDERING
JEDEC LEAD FREE WAVE SOLDERING PROCESS
PACKAGING
TRAY
