LPJ19618ABNL Power SMT Rj45 1x 10/100BT With LED Shielded POE IEEE802.3af

China LPJ19618ABNL Power SMT Rj45 1x 10/100BT With LED Shielded POE IEEE802.3af supplier

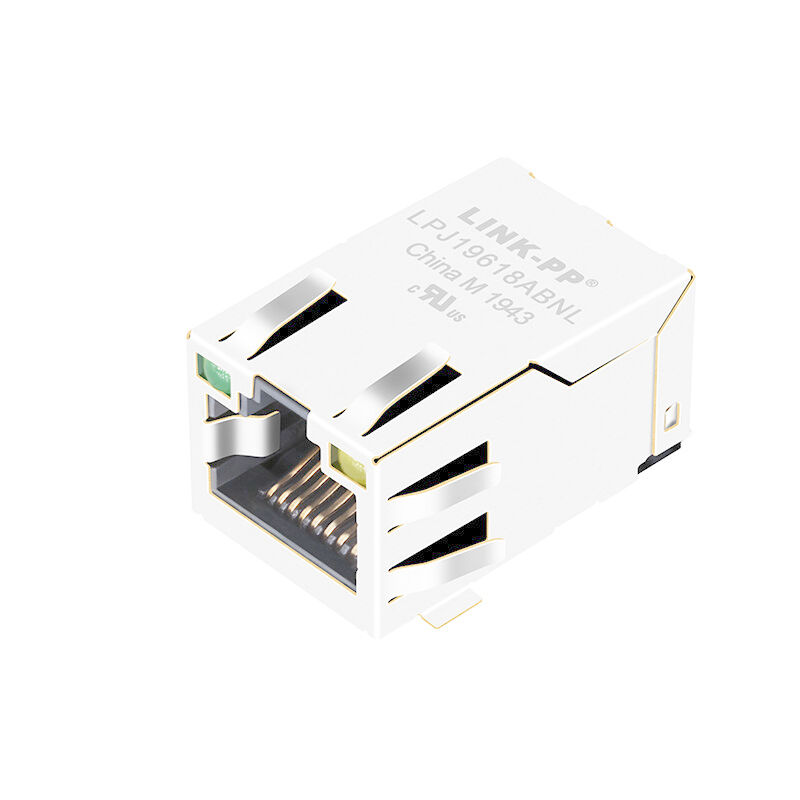

Large Image :  LPJ19618ABNL Power SMT Rj45 1x 10/100BT With LED Shielded POE IEEE802.3af

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: LPJ19618ABNL

Payment & Shipping Terms:

Minimum Order Quantity: 770
Price: Supported & Discount
Packaging Details: 110PCS/Reel,7Reels=770PCS=10KG=35.5*35.5*35cm/Carton
Delivery Time: Stock or 4-5 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Specification: LPJ19618ABNL Part Number: LPJ19618ABNL
Indicators: LED Available Ethernet: 10/100Mbps Power Over Ethernet
Mounting: SMD Samples: Free

LPJ19618ABNL Power SMT Rj45 1x 10/100BT With LED Shielded POE IEEE802.3af



  • IEEE 802.3af Power over Ethernet (PoE) Rj45 SMD Jack Shield With LEDs
  • 1x Surface Mount Rj45 Connector Green-Yellow LEDs
  • 350mA@48-57V Max
  • Power Over Ethernet Rj45 Magnetics Module
  • LPJ19618ABNL 1 x 10/100 Mbit Ethernet WIth LEDs Indicators
  • Extended Temp: -40℃ TO +85℃.




SMT Rj45 Power Over Ethernet IEEE802.3af
ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(±3%):
TX=1CT:1 RX=1CT:1
2.Inductance OCL:
350uH MIN @ 100KHz 0.1V 8mA DC Bias
3.DCR: 1.2Ω MAX
4.Insertion Loss:
-1.0dB MAX @ 1-100MHz
5.Return Loss:
-16dB MIN @ 1-30MHz
-14dB MIN @ 30-60MHz
-10dB MIN @ 60-80MHz
6.Cross talk:
-40dB MIN @ 1-30MHz
-35dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
7.Common Mode Rejection:
-35dB MIN @ 1-100MHz
8.Hipot Test: 1500Vrms
9.Operating Temperature Range: -40℃ TO +85℃.
LPJ19618ABNL Power SMT Rj45 1x 10/100BT With LED Shielded POE IEEE802.3af
LPJ19618ABNL Power SMT Rj45 1x 10/100BT With LED Shielded POE IEEE802.3af
