AFBR-83EDZ 100-Gbps 10-channel CXP Pluggable Optical Transceiver Module

China AFBR-83EDZ 100-Gbps 10-channel CXP Pluggable Optical Transceiver Module supplier

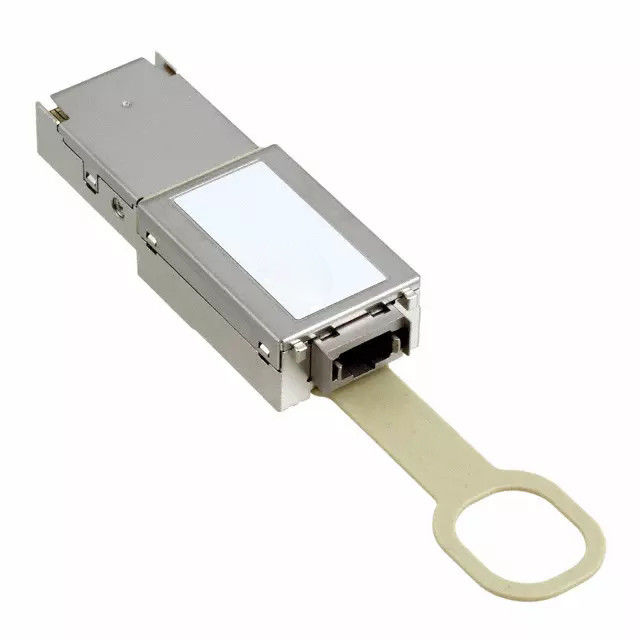

Large Image :  AFBR-83EDZ 100-Gbps 10-channel CXP Pluggable Optical Transceiver Module

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: AFBR-83EDZ

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Supportive
Packaging Details: 10PCS/tray,100pcs/carton
Delivery Time: Stock or 2-3 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 420000K/Month
Detailed Product Description
Specifications: AFBR-83EDZ Data Rate: 10.3125 Gbe
Wavelength: 850nm Maximun Distance: 150m
Fiber Type: Multimode Glass Emitter: VCSEL Array
Voltage: 3.3V Applications: Telecom/Datacom Systems
Connector: MTP(MPO) Mounting: Pluggable,CXP
Environment: Lead Free / RoHS Compliant MSL: 1(Unlimited)

AFBR-83EDZ 100-Gbps 10-channel CXP Pluggable Optical Transceiver Module (100GBASE-SR10)

Specifications: AFBR-83EDZ
LINK-PP Part Number: LPXXXXXX
Product Class: Fiber Optics
Product Family: Optical Transceivers
Product Series: CXP
Product Name: CXP Optical Transceivers
Status Available: Active
RoHS: RoHS-6 Compliance



Specifications:



Data Rate:



10.3125 Gbd

Wavelength: 850nm
Maximun Distance: 150m
Fiber Type: Multimode Glass
Emitter: VCSEL Array
Voltage-Supply: 3.3V
Applications: Telecom/Datacom Systems
Connector Type: MTP (MPO)
Mounting Type: Pluggable,CXP
Lead Free Status / RoHS Status: Lead Free / RoHS Compliant
Moisture Sensitivity Level(MSL): 1 (Unlimited)



Feature Description:



● Compliant to the 100GBASE-SR10 and CPPI Specifications per IEEE 802.3ba-2010 and supporting InfiniBand QDR/DDR/SDR applications
● Compliant to SFF-8642: Mini Multilane Series: Shielded Integrated Connector, and InfiniBand Architecture Specification V2 R1.3 for CXP Interface
● Multi-rate Capability from 1 Gbps to 10.5 Gbps
● High Channel Capacity: >100 Gbps per Module
● Operates at 10.3125 Gbps per Channel with 64b/66b Encoded Data for 100GbE application and at 10 Gbps with 8b/10b Encoded Data for IB-QDR Application
● Hot Pluggable for Easy System Installation
● Link Distance up to 100 m using OM3 Fiber and 150 m using OM4 Fiber
● 0 to 70 °C Case Temperature Operating Range
● Low Power Dissipation: < 3 W
●Proven High Reliability 850nm Technology: Avago VCSEL Array Transmitter and Avago PIN Array Receiver
● Two Wire Serial (TWS) Interface with Maskable Interrupt for Expanded Functionality Including:
● Individual Channel Functions: Channel/Output Disable, Squelch Disable, and Lane Polarity Inversion
● Diagnostic Monitoring Functions: Module Temperature and Supply Voltages, per Channel Laser Current and Laser Power, and Input Receiver Power
● Status per Channel: Tx Fault, Electrical (Transmitter) and Optical (Receiver) LOS, and Alarm Flags
● Programmable Equalization and De-Emphasis Settings for System Performance Optimization
● Standard 24 Lane Optical Fiber with MTP (MPO) Optical Connector for High Density and Thin, Light Weight Cable Management
