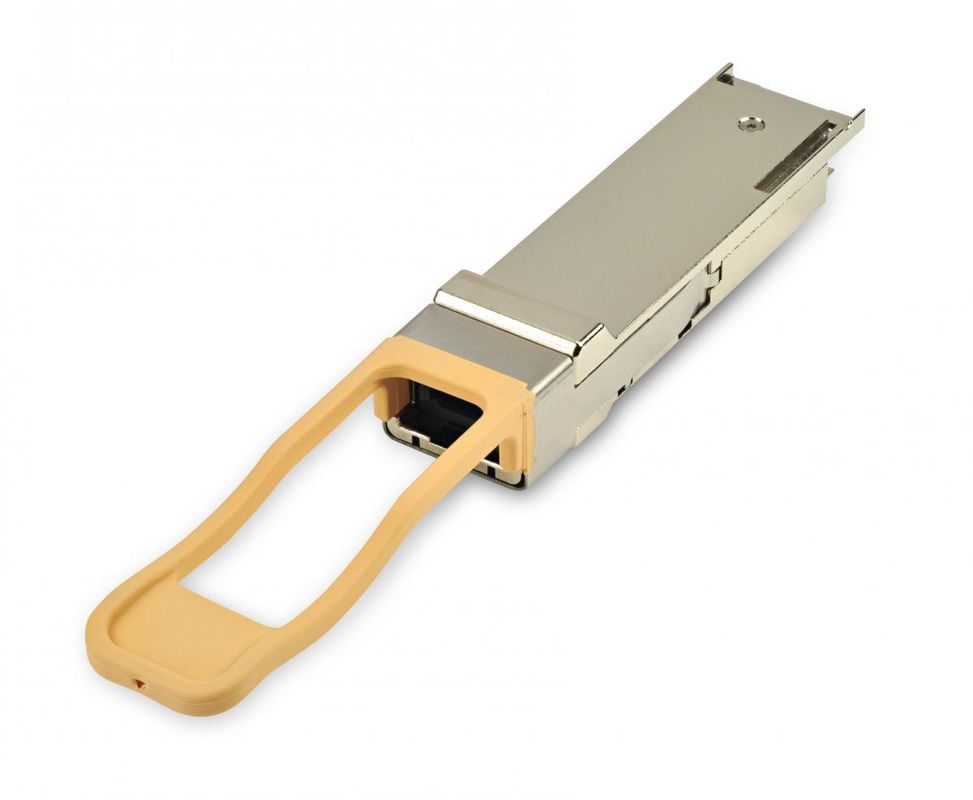

AFBR-89CDDZ 100GbE QSFP28 SR4 Pluggable Fiber Optic Transceiver Module

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: ISO 9001,ISO 14001,UL,SGS,REACH168

Model Number: AFBR-89CDDZ

Payment & Shipping Terms

Minimum Order Quantity: 10/100/25K

Price: $0.11-$35

Packaging Details: 20/Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 350K/Month

Get Best Price
Highlight:

fiber sfp module

,

fiber optic transceiver

Specifications:
AFBR-89CDDZ
Data Rate:
100 Gbps
Wavelength:
850nm
Maximun Distance:
100m
Fiber Type:
Multimode Glass
Emitter:
VCSEL
Voltage:
3.3V
Applications:
Telecom/Datacom Systems
Connector:
MTP (MPO)
Mounting:
Pluggable,QSFP28
Environment:
Lead Free / RoHS Compliant
MSL:
3(168 Hours)
Specifications:
AFBR-89CDDZ
Data Rate:
100 Gbps
Wavelength:
850nm
Maximun Distance:
100m
Fiber Type:
Multimode Glass
Emitter:
VCSEL
Voltage:
3.3V
Applications:
Telecom/Datacom Systems
Connector:
MTP (MPO)
Mounting:
Pluggable,QSFP28
Environment:
Lead Free / RoHS Compliant
MSL:
3(168 Hours)
AFBR-89CDDZ 100GbE QSFP28 SR4 Pluggable Fiber Optic Transceiver Module
AFBR-89CDDZ 100GbE QSFP28 SR4 Pluggable Fiber Optic Transceiver Module



Specifications​: AFBR-89CDDZ
LINK-PP Part Number: LPXXXXXX
Product Class: Fiber Optics
Product Family: Optical Transceivers
Product Series: QSFP28
Product Name: QSFP28 Optical Transceivers
Status Available: Limited Release
RoHS: RoHS-6 Compliance



Specifications:

Data Rate:

100 Gbps

Wavelength: 850nm
Maximun Distance: 100m
Fiber Type: Multimode Glass
Emitter: VCSEL
Voltage-Supply: 3.3V
Applications: Telecom/Datacom Systems
Connector Type: MTP (MPO)
Mounting Type: Pluggable,QSFP28
Lead Free Status / RoHS Status: Lead Free / RoHS Compliant
Moisture Sensitivity Level(MSL): 3(168 Hours)



Feature Description:



● Compatible with proprietary links with data rates up to 16 Gbps
● Compliant to 100GbE Electrical and Optical Cpecifications 802.3bm

   (Annex 83E CAUI-4 with Clause 91     RS-FEC, Clause 95 100GBASE-SR4)
● 100GbE Link Distances up to 100m OM4 or 70m OM3
● QSFP28 MSA Specification Compliant (including new functions per SFF-8636 Rev 2.4)
● Class 1 Eye Safety
● Push-pull Tab for Ease of Transceiver Insertion and Extraction
● Operates at 25.78125 Gbps or 10.3125 Gbps per Channel with 64b/66b Coded Data
● 0 to +70ºC Case Temperature Operating Range
● Proven High Reliability 850nm Technology: Avago VCSEL Transmitter and PIN Detector
● Hot pluggable QSFP28 Transceiver for Ease of Installation and Servicing
● Two Wire Serial (TWS) Interface with Digital Monitoring and Maskable Interrupts for

   Expanded Functionality
