Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: AFBR-79Q4Z-D
Payment & Shipping Terms
Minimum Order Quantity: 10/100/25K
Price: $0.11-$35
Packaging Details: 20/Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350K/Month
Specifications: |
AFBR-79Q4Z-D |
Data Rate: |
10 Gbps |
Wavelength: |
850nm |
Maximun Distance: |
100m |
Fiber Type: |
Singlemode Glass |
Emitter: |
DWDM EML |
Voltage: |
3.3V |
Applications: |
General Purpose |
Connector: |
MTP (MPO) |
Mounting: |
Pluggable, QSFP |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1 (Unlimited) |
Specifications: |
AFBR-79Q4Z-D |
Data Rate: |
10 Gbps |
Wavelength: |
850nm |
Maximun Distance: |
100m |
Fiber Type: |
Singlemode Glass |
Emitter: |
DWDM EML |
Voltage: |
3.3V |
Applications: |
General Purpose |
Connector: |
MTP (MPO) |
Mounting: |
Pluggable, QSFP |
Environment: |
Lead Free / RoHS Compliant |
MSL: |
1 (Unlimited) |
| Specifications: | AFBR-79Q4Z-D |
| LINK-PP Part Number: | LPXXXXXX |
| Product Class: | Fiber Optics |
| Product Family: | Optical Transceivers |
| Product Series: | QSFP |

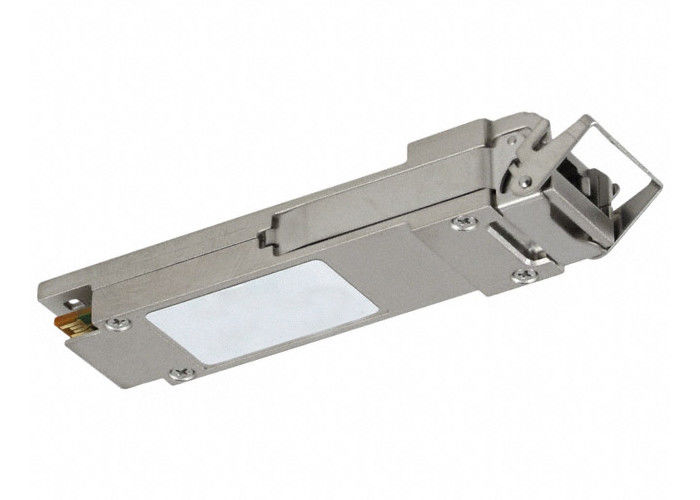

| Product Name: | QSFP Optical Transceivers |
| Status Available: | Active |
| RoHS: | RoHS-6 Compliance |
|
Specifications:
|
|
|
Data Rate: |
10 Gbps |
| Wavelength: | 850nm |
| Maximun Distance: | 100m |
| Fiber Type: | Singlemode Glass |
| Emitter: | DWDM EML |
| Voltage-Supply: | 3.3V |
| Applications: | General Purpose |
| Connector Type: | MTP (MPO) |
| Mounting Type: | Pluggable,QSFP |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Moisture Sensitivity Level(MSL): | 1 (Unlimited) |
|
Feature Description:
|
• High port density: 21mm horizontal port pitch
• Up to 100m links at 10G/channel using OM3 multimode
fiber
• Four independent transmitter channels and 4 independent
receiver channels per module
• Two Wire Serial (TWS) interface with maskable interrupt
for expanded functionality including:
– Individual channel functions: disable, squelch
disable
– A/D readback: module temperature and supply
voltages, per channel laser current and laser power,
or received power
– Status: per channel Tx fault, electrical (transmitter)
or optical (receiver) LOS, and alarm flags
