Home > products > POE RJ45 Connector > 7499511611 | LPJK2069AONL Gigabit POE+ RJ45 Connector Jack

7499511611 | LPJK2069AONL Gigabit POE+ RJ45 Connector Jack

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: ISO9001,SGS,UL,CE,REACH

Model Number: 7499511611

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price
Highlight:

rj45 power over ethernet

,

dual rj45 jack

Specifications:
7499511611
P/N:
LPJK2069AONL
Hi-pot:
1500V
LED Color:
Green/Yellow
Mechanical:
33.02x16.60x13.50mm
Samples:
Free
Specifications:
7499511611
P/N:
LPJK2069AONL
Hi-pot:
1500V
LED Color:
Green/Yellow
Mechanical:
33.02x16.60x13.50mm
Samples:
Free

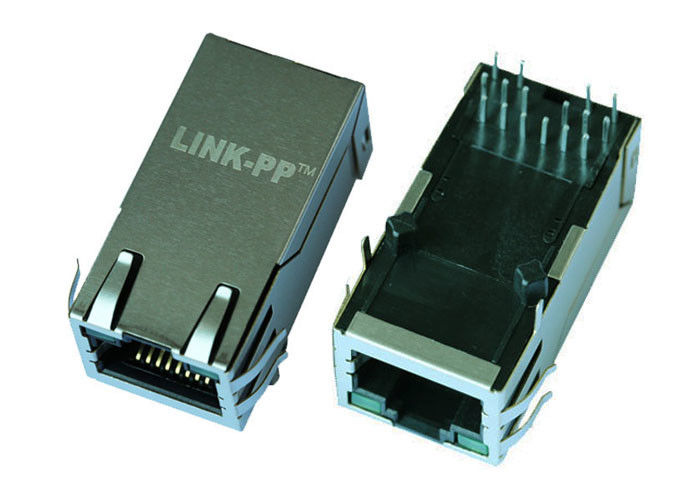

7499511611 | LPJK2069AONL Gigabit POE+ RJ45 Connector Jack
7499511611 | LPJK2069AONL Gigabit POE+ RJ45 Connector Jack



  1. 1x 10/100/1000Base Power Enable Rj45 LPJK2069AONL
  2. IEEE 802.3at Compatible to  7499511611
  3. 600mA Max@57VDC Continuous
  4. 720 Max@57VDC For 200 Milliseconds
  5. Suitable CAT5 & 6 FastEthernet Cable or better UTP
Shielded 1x1 Port RJ45 Female Connector with 10/100/1000 Base-T Integrated Magnetics & PoE+ ,Orange&Green/Yellow LED,Tab UP,RoHS
LINK-PP Part Number LPJK2069AONL
WE Part Number 7499511611
Application-Lan ETHERNET(PoE+)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 12
Diodes NO DIODES
LED Option Orange&Green/Yellow LEDs
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.531
Package Height (mm) 13.50
Package Length (Inches) 1.300
Package Length (mm) 33.02
Package Width (Inches) 0.654
Package Width (mm) 16.60
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs With
Speed 10/100/1000 BASE-T
Temperature 0 TO + 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

7499511611 | LPJK2069AONL Gigabit POE+ RJ45 Connector Jack 0

Main Customer



Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......

11A053-5722-00 POE RJ45 Connector LPJ0009GDNL Rectifier Bridge AC To DC

Applications For Terminal User



Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...



Competitive Advantage



18 years production experience,

2600 staff,

100% test

Flexible delivery time
