LPJG67011AGNL 2x6 POE RJ45 Connector 1000Base-T With LED IEE802.3at

China LPJG67011AGNL 2x6 POE RJ45 Connector 1000Base-T With LED IEE802.3at supplier

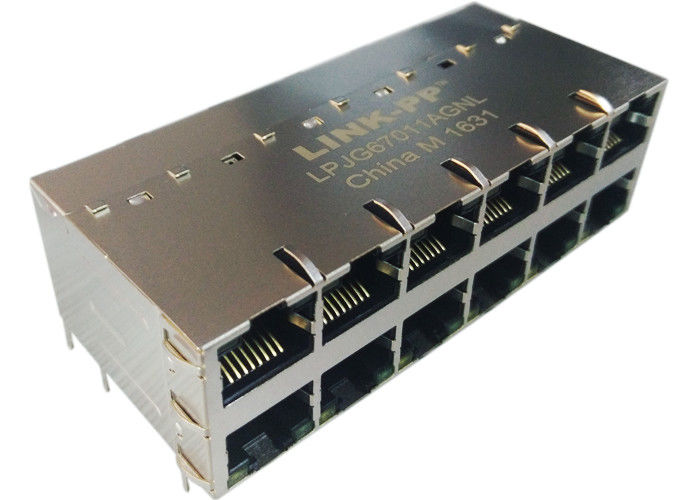

Large Image :  LPJG67011AGNL 2x6 POE RJ45 Connector 1000Base-T With LED IEE802.3at

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,REACH,RoHS
Model Number: LPJG67011AGNL

Payment & Shipping Terms:

Minimum Order Quantity: 200/500/1200
Price: Supportive&Competitive
Packaging Details: 18pcs/tray,324pcs/carton
Delivery Time: Stock or 5 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Detailed Product Description
Specification: LPJG67011AGNL Standard: IEEE 802.3af/at
Ethernet: 12x 1GbE Ports Power Enable Mounting: THT
Termination: Solder Samples: Available

LPJG67011AGNL 2x6 POE RJ45 Connector 1000Base-T With LED IEE802.3at
  1. 12 Port Rj45 Gigabit Ethernet  LPJG67011AGNL
  2. Power Over Ethernet+ IEEE802.3at
  3. 600mA / 720mA Continuous
  4. Application to Industrial Ethernet Switches



ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(± 2%):
TX=1CT:1CT,1CT:1CT
2.Inductance OCL: 350uH MIN
@100KHz/0.1V,8mA DC Bias
3.Insertion Loss:
-1.0dB MAX @ 1.0-65MHz
4.Return Loss:
-20dB MIN @ 1-10MHz
-16dB MIN @ 10-30MHz
-12dB MIN @ 30-60MHz
-10dB MIN @ 60-100MHz
5.Cross talk:
-40dB MIN @ 1-30MHz
-35dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
6.Common Mode Rejection:
-30dB MIN @ 1-50MHz
-20dB MIN @ 50-150MHz
7.Hipot Test: 1500Vrms MIN
