Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168

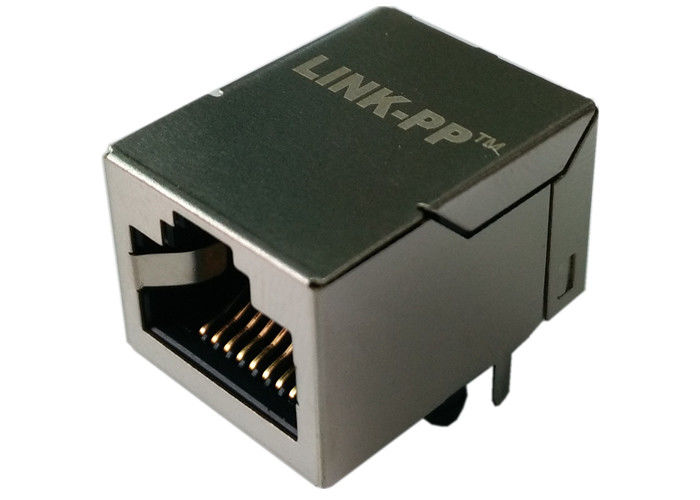

Model Number: HFJ11-RPE36E-S1RL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50pcs/tray,1200pcs/carton.
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Specs: |
HFJ11-RPE36E-S1RL |
P-N: |
LPJ4164DNL |
Speed: |
10/100 Base-Tx |
Mountings: |
PCB |
Power: |
Enable |
Samples: |
Available |
Specs: |
HFJ11-RPE36E-S1RL |
P-N: |
LPJ4164DNL |
Speed: |
10/100 Base-Tx |
Mountings: |
PCB |
Power: |
Enable |
Samples: |
Available |
| Turn Ratio(±2%): | TX=1CT:1CT RX=1CT:CT |
| Inductance OCL | 350uH MIN/@ 100KHz,0.1V,8mA DC Bias |
| Insertion Loss | -1.0dB MAX @ 1-65MHz |
| Return Loss | -20dB MIN @ 1-10MHz |
| -16dB MIN @ 10-30MHz | |
| -12dB MIN @ 30-60MHz | |
| -10dB MIN @ 60-100MHz | |
| Cross talk | -40dB MIN @ 1-30MHz |
| -35dB MIN @ 30-60MHz | |
| -30dB MIN @ 60-100MHz | |
| Common Mode Rejection | -30dB MIN @ 1-50MHz |
| -20dB MIN @ 50-150MHz | |
| Hipot Test | 1500Vrms MIN |
If you are interested in more POE RJ45 Connector Jack, pls contact us directly for design-suggestion.
