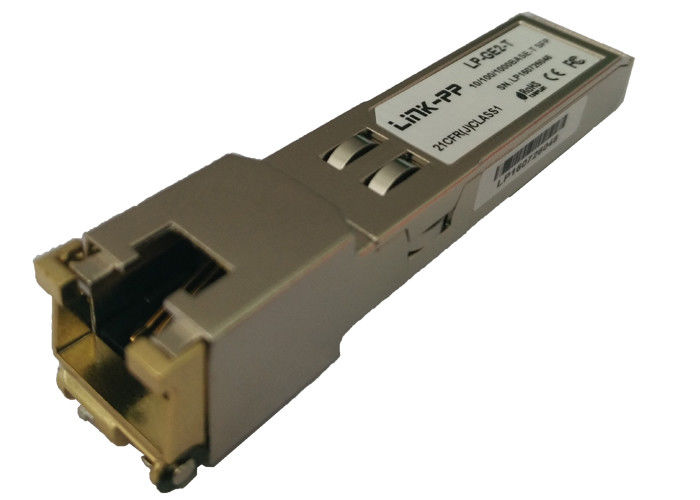

Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: ABCU-571NRZ
Payment & Shipping Terms
Minimum Order Quantity: 10/100/25K
Price: $0.11-$35
Packaging Details: 20/Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350K/Month
Specifications: |
ABCU-571NRZ |
Data Rate: |
1.25Gbps |
Wavelength: |
850nm |
Maximun Distance: |
100m |
Fiber Type: |
TX/RX |
Package Type: |
SFP |
Voltage: |
3.3V |
Applications: |
Ethernet |
Mounting: |
Snap Fit To Panel |
Temp Range: |
0℃ To 70℃ |
Fall Time: |
0.25 Ns |
Rise Time: |
0.25 Ns |
Specifications: |
ABCU-571NRZ |
Data Rate: |
1.25Gbps |
Wavelength: |
850nm |
Maximun Distance: |
100m |
Fiber Type: |
TX/RX |
Package Type: |
SFP |
Voltage: |
3.3V |
Applications: |
Ethernet |
Mounting: |
Snap Fit To Panel |
Temp Range: |
0℃ To 70℃ |
Fall Time: |
0.25 Ns |
Rise Time: |
0.25 Ns |
| Specifications: | ABCU-571NRZ |
| LINK-PP Part Number: | LPXXXXXX |
| Product Class: | Fiber Optics |
| Product Family: | Optical Transceivers |
| Product Series: | SFP |
| Product Name: | SFP Optical Transceivers |
| Status Available: | Active |
| RoHS: | RoHS-6 Compliance |
|
Specifications:
|
|
|
Data Rate: |
1.25 Gbps |
| Wavelength: | 850nm |
| Maximun Distance: | 100m |
| Fiber Type: | Singlemode Glass |
| Emitter: | DWDM EML |
| Voltage-Supply: | 3.3V |
| Applications: | Ethernet |
| Connector Type: | RJ-45 |
| Mounting Type: | Pluggable,SFP |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Moisture Sensitivity Level(MSL): | 1(Unlimited) |
|
Feature Description:
|
● RoHS-6 Compliant (see Table 1)
● Designed for Industry-Standard, MSA Compliant Small Form Factor Pluggable (SFP) Ports
● Compatible with IEEE 802.3:2000
● Custom RJ-45 connector with integrated magnetics
● Link lengths at 1.25 Gbd: up to 100 m per IEEE802.3
● Low power, high performance 1.25 Gbd SerDes integrated in module
● Single +3.3 V power supply operation
● Auto-negotiation per IEEE 802.3:2000 Clause 28 (Twisted Pair) and Clause 37 (1000BASE-X)
● Compatible to both shielded and unshielded twisted pair category 5 cable
● Two configurations:
ABCU-5700RZ: RX_LOS enabled
ABCU-5710RZ: RX_LOS disabled
● Rated for Commercial Temperature applications(0℃～70℃)
|
Function:
|
Designed for Industry-Standard, MSA Compliant Small Form Factor Pluggable (SFP) Ports.
