10 Pin Gigabit Vertical RJ45 Jack LPJD4713BENL Top Entry Shield w/LED

China 10 Pin Gigabit Vertical RJ45 Jack LPJD4713BENL Top Entry Shield w/LED supplier
10 Pin Gigabit Vertical RJ45 Jack LPJD4713BENL Top Entry Shield w/LED supplier 10 Pin Gigabit Vertical RJ45 Jack LPJD4713BENL Top Entry Shield w/LED supplier

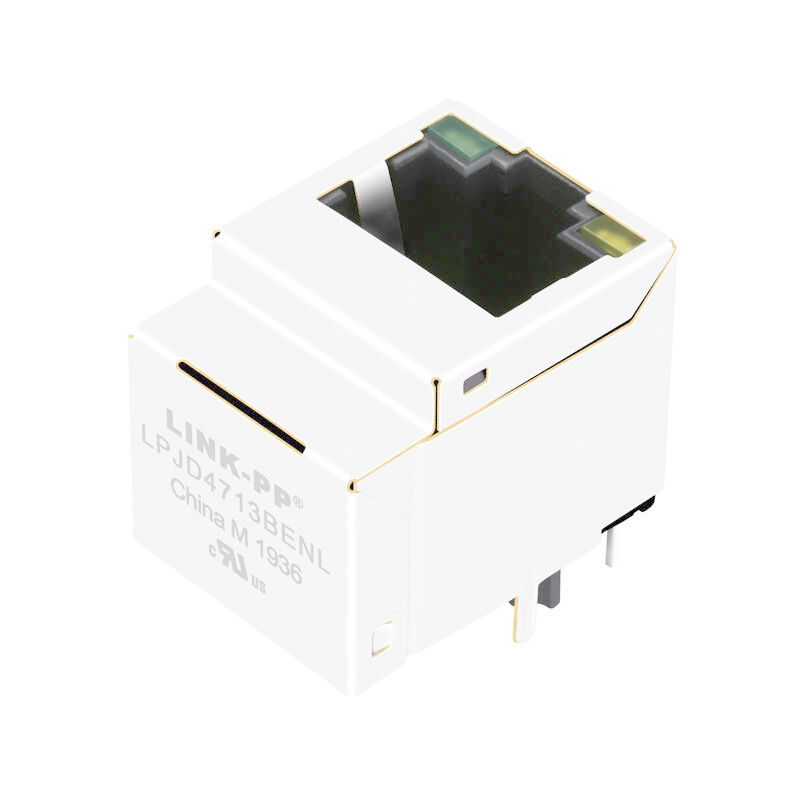

Large Image :  10 Pin Gigabit Vertical RJ45 Jack LPJD4713BENL Top Entry Shield w/LED

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH163
Model Number: LPJD4713BENL

Payment & Shipping Terms:

Minimum Order Quantity: 50
Price: Supportive & Competitive
Packaging Details: 54PCS/Tray,24Trays=37*30*30CM=1296PCS=10KG/Carton
Delivery Time: Stock or 4 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Specification: LPJD4713BENL Part No: LPJD4713BENL
Ethernet: 10/100Base-T Ethernet PHY Indicator: LED Flexible
Mouting: 180 Degree Samples: Available

10Pin Gigabit Vertical RJ45 Jack LPJD4713BENL Top Entry Shield w/LED
  • LPJD4713BENL  LINK-PP Rj45 Top Entry
  • Top Entry Rj-45 Model With 10/100/1000Base-T Magnetic Transformers Inside
  • Rj45 With Integrated Magnetic PCB Mounting
Vertical Ethernet RJ45 Connector with 1000 Base-T Integrated Magnetics,Green/Yellow LED,RoHS
LINK-PP Part Number LPJD4713BENL
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option GREEN/YELLOW
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.650
Package Height (mm) 16.51
Package Length (Inches) 0.849
Package Length (mm) 21.56
Package Width (Inches) 0.628
Package Width (mm) 15.95
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITHOUT
Speed 1000 BASE-T
Temperature - 40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Electrical Specifications @25℃
1.OCL: 350uH Min
@100KHz,0.1V,8mADC BIAS
2.Turns Ratio(%%P2%):
TX = 1CT∶1CT RX = 1CT∶1CT
3.Insertion Loss:
0.1-100MHz:-1.1dB Max
4.Return Loss(dB Min):
0.5-30MHz:-18 40MHz:-15.5
50MHz:-13.6 60-80MHz:-12
5.Crosstalk(dB Typ):
0.1-100MHz:-40
6.Common Mode Rejection(dB Typ):
0.1-30MHz:-50 30-60MHz:-40
60-100MHz:-35
7.Isolation Voltage: 1500Vrms
8.Operating Temperature: -40℃~85℃

10 Pin Gigabit Vertical RJ45 Jack LPJD4713BENL Top Entry Shield w/LED 10 Pin Gigabit Vertical RJ45 Jack LPJD4713BENL Top Entry Shield w/LED

FAQ

Q1. What is your terms of packing?

A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,

we can pack the goods in your branded boxes after getting your authorization letters

Q4. How about your delivery time?

A: Generally, it will take 10 to 45 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the courier cost.

Q7. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery
