Home > products > Discrete Magnetic Transformers > Gigabit Ethernet Magnetic Lan Isolation Transformer 749020111A 802.3ab For 1000BaseT

Gigabit Ethernet Magnetic Lan Isolation Transformer 749020111A 802.3ab For 1000BaseT

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: 749020111A

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

lan discrete transformer

,

network transformer

Specifications:
749020111A Obsolete
Inductance:
350µH
Turns Ratio:
1 : 1
Mounting Type:
Surface Mount
Dimension:
16.5mm X 9mm X 2.35mm
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
Updated:
749020111A => LP82440ANL
Specifications:
749020111A Obsolete
Inductance:
350µH
Turns Ratio:
1 : 1
Mounting Type:
Surface Mount
Dimension:
16.5mm X 9mm X 2.35mm
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
Updated:
749020111A => LP82440ANL
Gigabit Ethernet Magnetic Lan Isolation Transformer 749020111A 802.3ab For 1000BaseT
LP82440ANL Replace Gigabit Ethernet Magnetic 749020111A (Obsolete)

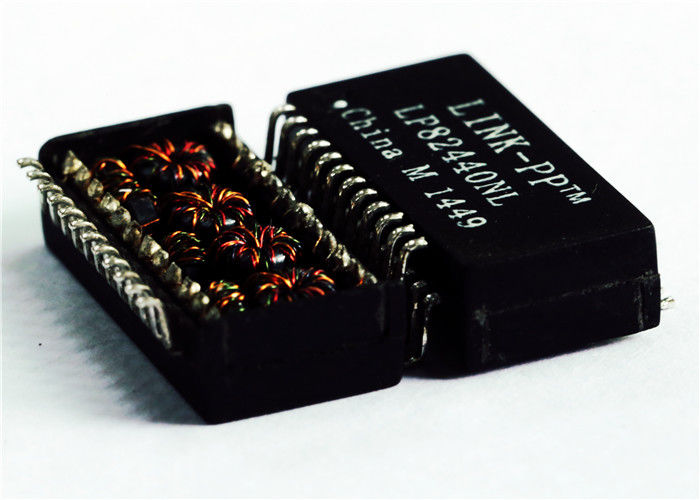

LP82440ANL Low Profile SMD 24 Pos Gigabit Magnetic TRansformer.
Gigabit Ethernet Magnetic Lan Isolation Transformer 749020111A 802.3ab For 1000BaseT 0

REACH Compliant
Yes
Status
Active More Than 15 Years
Transformer Type
DATACOM TRANSFORMER
Application
SIGNAL
Approvals
UL
Insertion Loss
1.0 dB
Isolation Voltage
1500.0 V
Manufacturer Series
749020111A
Mounting Feature
SURFACE MOUNT
Operating Temperature-Min
0.0 Cel
Operating Temperature-Max
70.0 Cel
Packing Method
TAPE & REEL
Physical Dimension
16.5mm x 9mm x 2.35mm
Primary Inductance
350.0 µH
Sub Category
Other Transformers
Turns Ratio (Np:Ns)
1:1
Height
2.35 mm
Length
16.5 mm
Width
9.0 mm
Equivalent / Cross LP82453NL



Gigabit Ethernet Magnetic 749020111A Lan Pulse Transformer 802.3ab for 1000BaseT
